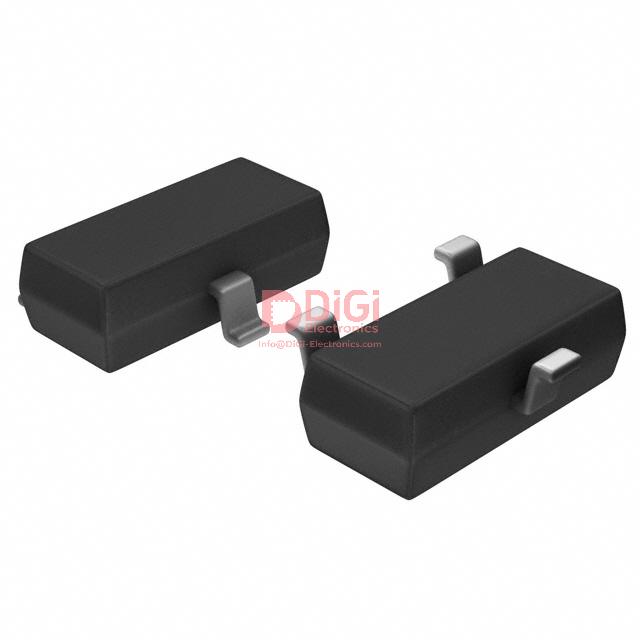

MAX6334UR16D3-T The MAX6334UR16D3-T is a supervisor IC from Analog Devices designed for power supply monitoring. It features a 1.6V reset threshold and an active-low open-drain output.
Mfr Part #:

MAX6334UR16D3-T

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX6334UR16D3-T is a supervisor IC from Analog Devices designed for power supply monitoring. It features a 1.6V reset threshold and an active-low open-drain output.
✓ Total Stock: 3,751 pcs
$ Price Range: $0.75

MAX6334UR16D3-T Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,751 pcs
On Request
2751 pcs On Request 1 On Request On Request 05+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX6334UR16D3-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Operating Temperature
Output
Reset
Reset Timeout
SVHC Present
Supplier Device Package
Supplier Package
Supply Current
Tape & Reel
Type
Voltage
View Similar Products (0)

MAX6334UR16D3-T Description

Short technical summary and product information.

The MAX6334UR16D3-T is a microprocessor supervisory circuit from Analog Devices, Inc. designed to monitor power supplies in digital systems. It asserts a reset signal when the VCC supply voltage drops below a preset threshold, maintaining the reset for a specified timeout period. This device features a reset threshold of 1.6V and provides an active-low, open-drain reset output.



Key electrical characteristics include a 1.6V reset threshold and a minimum reset timeout of 100ms. The device is designed for precision monitoring of power supply voltages and is suitable for 1.8V to 3.3V systems. It operates over a wide temperature range of -40°C to 125°C (TA).



The MAX6334UR16D3-T is supplied in a compact 3-pin SOT-23-3 surface-mount package, making it ideal for space-critical applications. Its simple reset/power-on reset functionality and robust design contribute to increased circuit reliability and reduced system cost by eliminating external components.



This supervisor IC is commonly used in applications requiring critical μP/μC power monitoring, including computers, controllers, and intelligent instruments. Its open-drain output structure offers flexibility in system design.

MAX6334UR16D3-T Quick Information

Product Type: Supervisor IC
Canonical Name: MAX6334UR16D3-T Supervisor IC
Subcategory: Supervisors

MAX6334UR16D3-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX6334UR16D3-T Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX6334UR16D3-T Features

  • Monitors single power supply voltage.
  • 1.6V reset threshold.
  • Active-low open-drain output.
  • 100ms minimum reset timeout.
  • Compact SOT-23-3 package.

MAX6334UR16D3-T Applications

  • Critical μP/μC power monitoring.
  • Computer and controller systems.
  • Intelligent instrument applications.
  • Portable and battery-powered equipment.

MAX6334UR16D3-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reset threshold voltage for the MAX6334UR16D3-T?

The reset threshold voltage for the MAX6334UR16D3-T is 1.6V.

What is the reset output type and polarity?

The MAX6334UR16D3-T has an active-low, open-drain or open collector reset output.

What is the minimum reset timeout period?

The minimum reset timeout period for the MAX6334UR16D3-T is 100ms.

What type of package is the MAX6334UR16D3-T supplied in?

The MAX6334UR16D3-T is supplied in a 3-pin SOT-23-3 package.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C (TA).

What is the ultra-low operating supply voltage?

The ultra-low operating supply voltage is 0.7V.

What is the typical supply current?

The typical supply current is 3.3μA.
