| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,548 pcs
|
8548 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

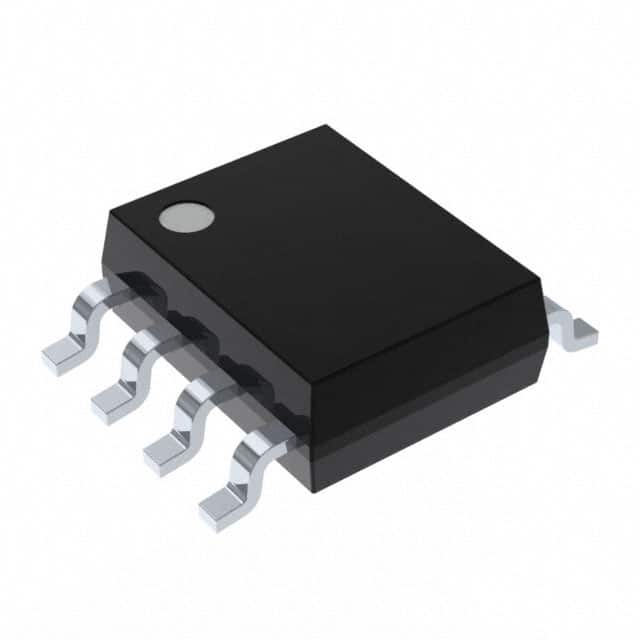

The MAX6174BASA is a high-precision voltage reference integrated circuit manufactured by Analog Devices Inc./Maxim Integrated. This device provides a fixed output voltage of 4.096V with a tight tolerance of ±0.1%, making it suitable for applications requiring stable voltage references.
Key electrical specifications include an output current capability of 30 mA, a temperature coefficient of 10ppm/°C, and low noise performance with 7µVp-p from 0.1Hz to 10Hz and 11.5µVrms from 10Hz to 10kHz. The input voltage range is from 6.1V to 40V, with a supply current of 650µA.
Designed for operation in demanding environments, the MAX6174BASA operates across a wide temperature range of -40°C to 125°C. It is housed in an 8-SOIC surface-mount package, measuring 3.90mm in width, facilitating integration into various electronic designs.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating. The device is suitable for applications requiring reliable and accurate voltage references.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 6.1V to 40V.
It is available in an 8-SOIC surface-mount package.
-40°C to 125°C.
The fixed output voltage is 4.096V.
The voltage tolerance is ±0.1%.
The temperature coefficient is 10ppm/°C.
The output current capability is 30mA.
