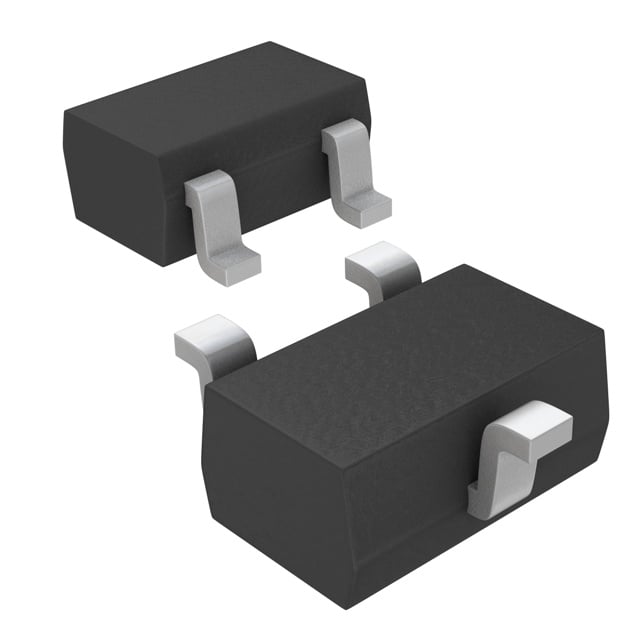

MAX6138BEXR12+T The MAX6138BEXR12+T is a shunt voltage reference from Analog Devices Inc./Maxim Integrated. It offers a fixed 1.2205V output with a tight tolerance of ±0.2%.
Mfr Part #:

MAX6138BEXR12+T

Available from 1 distributors
Mfr Name: AD(RoHS)
AD(RoHS)
The MAX6138BEXR12+T is a shunt voltage reference from Analog Devices Inc./Maxim Integrated. It offers a fixed 1.2205V output with a tight tolerance of ±0.2%.
✓ Total Stock: 530 pcs
$ Price Range: $1.20

MAX6138BEXR12+T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
530 pcs
530 pcs On Request 1 On Request On Request On Request On Request On Request

MAX6138BEXR12+T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
SVHC Present
Tape & Reel

MAX6138BEXR12+T Description

Short technical summary and product information.

The MAX6138BEXR12+T is a high-precision shunt voltage reference IC manufactured by Analog Devices Inc./Maxim Integrated. It provides a stable output voltage of 1.2205V with a low tolerance of ±0.2%, making it suitable for applications requiring accurate voltage references.



This device features a low output current capability of 15mA and a low cathode current of 60µA. The temperature coefficient is rated at 25ppm/°C, ensuring stable performance over its operating temperature range of -40°C to 85°C. It also exhibits low noise, with a noise level of 20µVrms in the 10Hz to 10kHz range.



The MAX6138BEXR12+T is available in a compact SC-70, SOT-323 package, designed for surface mounting. This packaging makes it ideal for space-constrained designs. The component is supplied in tape and reel packaging, suitable for automated assembly processes.

MAX6138BEXR12+T Quick Information

Product Type: Voltage Reference
Series: MAX6138
Canonical Name: Analog Devices Inc./Maxim Integrated MAX6138BEXR12+T Voltage Reference
Subcategory: Power Management (PMIC)

MAX6138BEXR12+T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

MAX6138BEXR12+T Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX6138BEXR12+T Features

  • Fixed 1.2205V output voltage.
  • Tight ±0.2% output voltage tolerance.
  • Low 25ppm/°C temperature coefficient.
  • Operates from -40°C to 85°C.
  • Surface mount SC-70, SOT-323 package.

MAX6138BEXR12+T Applications

  • Precision voltage regulation circuits.
  • Battery-powered instrumentation.
  • Low-power system references.
  • Data acquisition systems.

MAX6138BEXR12+T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the MAX6138BEXR12+T?

The MAX6138BEXR12+T has a fixed output voltage of 1.2205V.

What is the output current capability of this voltage reference?

The MAX6138BEXR12+T can provide an output current of up to 15mA.

What is the tolerance of the MAX6138BEXR12+T voltage reference?

The voltage tolerance for the MAX6138BEXR12+T is ±0.2%.

What is the temperature coefficient of the MAX6138BEXR12+T?

The temperature coefficient is 25ppm/°C.

What is the operating temperature range for the MAX6138BEXR12+T?

The operating temperature range is -40°C to 85°C.

What package type is the MAX6138BEXR12+T supplied in?

The MAX6138BEXR12+T is supplied in an SC-70, SOT-323 package.
