| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,040 pcs
|
9040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Supply Current | |
| Temperature Coefficient | |
| Tolerance |
The MAX6133A25+ is a series voltage reference manufactured by Analog Devices Inc./Maxim Integrated. This integrated circuit provides a stable and precise 2.5V fixed output voltage, making it suitable for applications requiring accurate voltage regulation.
Key electrical characteristics include a current output capability of 15 mA and a tight tolerance of ±0.06%. The device operates with an input voltage range of 2.7V to 12.6V and consumes a low supply current of 85µA. Its temperature coefficient is rated at 7ppm/°C, ensuring stable performance across a wide operating temperature range of -40°C to 125°C.

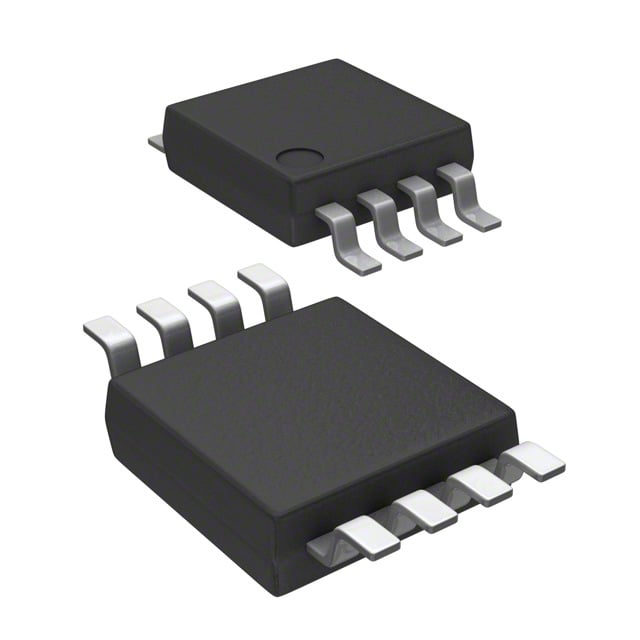

The MAX6133A25+ is available in an 8-TSSOP, 8-MSOP surface-mount package. This packaging is designed for efficient integration into compact electronic designs. The component is specified for a Moisture Sensitivity Level (MSL) of 1, indicating it can be handled with standard precautions.
This voltage reference is compliant with RoHS3 standards and is REACH unaffected, aligning with environmental regulations for electronic components.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX6133A25+ has a fixed output voltage of 2.5V.
The tolerance is ±0.06%.
The temperature coefficient is 7ppm/°C.
The operating temperature range is -40°C to +125°C.
The MAX6133A25+ is available in 8-TSSOP and 8-MSOP surface mount packages.
