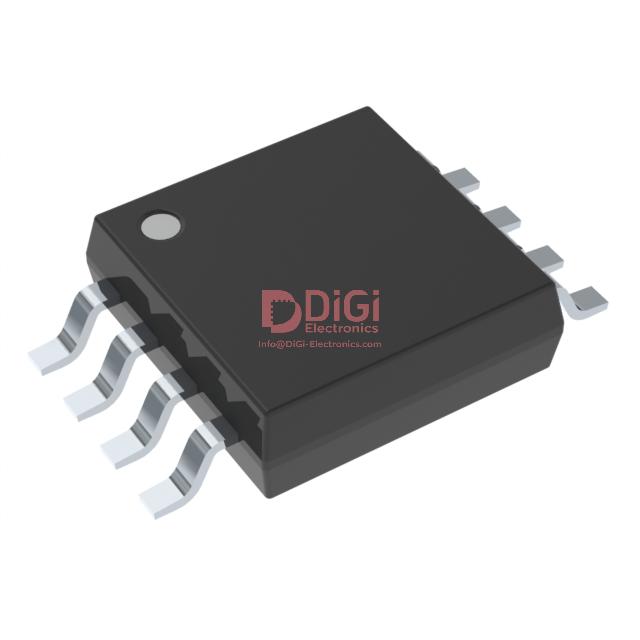

The MAX606EUA from Analog Devices is a highly integrated, low-profile step-up DC-DC converter optimized for space-constrained applications like flash memory and PCMCIA cards. It operates from an input voltage range of 3V to 5.5V, delivering a regulated output voltage of 5V, 12V, or an adjustable output from VIN to 12.5V.
This converter features a high switching frequency of up to 1MHz (for the MAX606 variant), enabling the use of small external components and a compact overall circuit size. It can supply up to 180mA of output current at 5V with a ±4% output accuracy. Additional features include a 1µA logic-controlled shutdown mode and user-controlled soft-start to manage inrush current.
The MAX606EUA is available in an 8-pin µMAX package, which offers a very low profile (1.11mm maximum height) and a small footprint, making it suitable for Type 1, 2, and 3 card standards. The surface-mount package facilitates automated assembly processes.
Key applications include PCMCIA cards, memory cards, digital cameras, and hand-held equipment where low height and compact size are critical design parameters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3V to 5.5V.
The output can be preset to 5V or 12V.
The maximum output current at 5V is 180mA.
The operating temperature range is -40°C to 85°C.
It is available in an 8-uMAX/uSOP surface-mount package, also compatible with 8-TSSOP and 8-MSOP footprints.
The typical switching frequency is 1MHz.
The typical shutdown current is 1µA.
