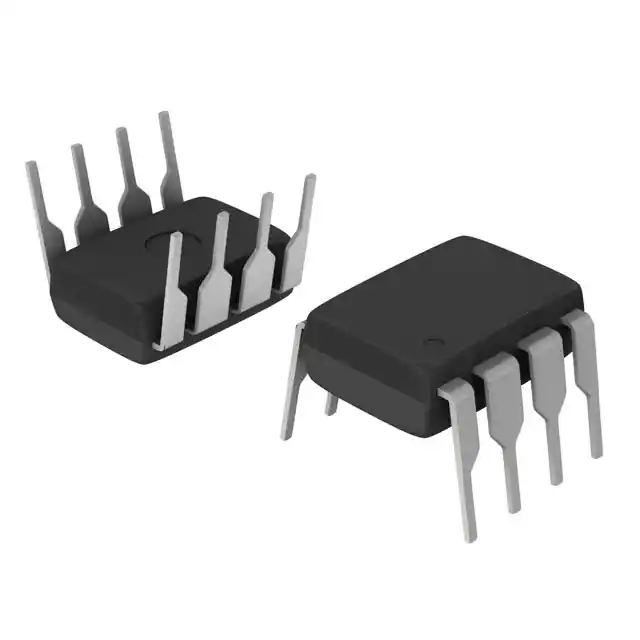

MAX603 The MAX603CPA+ is a linear voltage regulator IC from Analog Devices Inc./Maxim Integrated. It offers an adjustable output voltage range and a maximum output current of 500mA.
Mfr Part #:

MAX603

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX603CPA+ is a linear voltage regulator IC from Analog Devices Inc./Maxim Integrated. It offers an adjustable output voltage range and a maximum output current of 500mA.
✓ Total Stock: 21,271 pcs
$ Price Range: $0.28

MAX603 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
21,271 pcs
On Request
21271 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX603 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
Protection Features
Supplier Device Package
Voltage Dropout (Max)
View Similar Products (0)

MAX603 Description

Short technical summary and product information.

The MAX603CPA+ is a linear voltage regulator IC manufactured by Analog Devices Inc./Maxim Integrated. This component is designed for positive voltage regulation with an adjustable output that can range from 1.25V up to 11V. It supports a maximum input voltage of 11.5V and can deliver an output current of up to 500mA. The device features a low quiescent current of 35 µA and includes protection features such as over current, over temperature, and reverse polarity protection.



Operating within a temperature range of 0°C to 70°C, the MAX603CPA+ is suitable for various applications. It is housed in an 8-PDIP through-hole package, making it convenient for breadboarding and prototyping. The regulator's dropout voltage is specified as a maximum of 0.55V at 500mA.



This part is RoHS3 Compliant, REACH Unaffected, and has a Moisture Sensitivity Level (MSL) of 1. Its detailed description includes features like an adjustable (fixed) output type and a single regulator output configuration. The part number MAX603CPA+ is associated with the base product number MAX603.

MAX603 Quick Information

Product Type: Linear Voltage Regulator IC
Canonical Name: MAX603CPA+ Linear Voltage Regulator IC
Subcategory: PMIC - Voltage Regulators - Linear

MAX603 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX603 Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX603 Features

  • Positive adjustable linear voltage regulator.
  • Output voltage adjustable from 1.25V to 11V.
  • Maximum output current of 500mA.
  • Low quiescent current of 35 µA.
  • Through-hole 8-PDIP package.

MAX603 Applications

  • Ideal for battery-powered portable devices.
  • Used in post-regulation for switching supplies.
  • Suitable for low-power microcontroller power rails.
  • Applicable in industrial control systems.

MAX603 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output current of the MAX603?

The MAX603 can deliver up to 500mA output current.

What is the input voltage range for the MAX603?

The maximum input voltage is 11.5V.

What is the operating temperature range of the MAX603?

The operating temperature range is 0°C to 70°C.

What package is the MAX603 available in?

The MAX603 is available in an 8-DIP (0.300", 7.62mm) through-hole package, also known as 8-PDIP.

What protection features does the MAX603 include?

The MAX603 includes over current, over temperature, and reverse polarity protection.
