MAX6023EBT25-T The Analog Devices MAX6023EBT25-T is a series voltage reference IC with a fixed 2.5V output. It offers a tolerance of ±0.2% and operates over a temperature range of -40°C to 85°C.
Mfr Part #:

MAX6023EBT25-T

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices MAX6023EBT25-T is a series voltage reference IC with a fixed 2.5V output. It offers a tolerance of ±0.2% and operates over a temperature range of -40°C to 85°C.
✓ Total Stock: 575 pcs
$ Price Range: $0.28

MAX6023EBT25-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
575 pcs
On Request
575 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX6023EBT25-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
SVHC Present
Temperature Coefficient
Tolerance
View Similar Products (0)

MAX6023EBT25-T Description

Short technical summary and product information.

The MAX6023EBT25-T from Analog Devices is a series voltage reference designed for precision applications. It provides a stable fixed output voltage of 2.5V with a tight tolerance of ±0.2% and a low temperature coefficient of 30ppm/°C.



This IC features low supply current of 35µA and an output current capability of 500µA. It operates from an input voltage range of 2.7V to 12.6V and is specified for operation in temperatures from -40°C to 85°C.

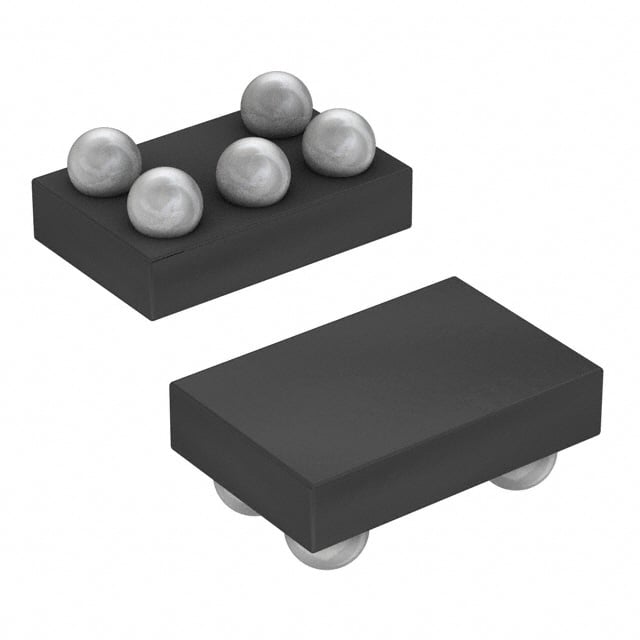

The MAX6023EBT25-T is available in a compact 5-WFBGA, CSPBGA package, suitable for surface mount applications. Its low noise characteristics, including 60µVp-p from 0.1Hz to 10Hz and 125µVrms from 10Hz to 10kHz, make it ideal for various power management circuits requiring stable voltage references.

MAX6023EBT25-T Quick Information

Product Type: Voltage Reference
Series: MAX6023
Canonical Name: Analog Devices / Maxim Integrated MAX6023EBT25+T Voltage Reference
Subcategory: Linear Voltage Regulators

MAX6023EBT25-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX6023EBT25-T Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX6023EBT25-T Features

  • Fixed 2.5V output voltage.
  • Tight tolerance of ±0.2%.
  • Low 30ppm/°C temperature coefficient.
  • Wide 2.7V to 12.6V input range.
  • Surface mount 5-WFBGA, CSPBGA package.

MAX6023EBT25-T Applications

  • Precision voltage regulation circuits.
  • Low power battery-operated devices.
  • Instrumentation and measurement systems.
  • Power management applications.

MAX6023EBT25-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the MAX6023EBT25-T?

2.5V.

What is the tolerance of this voltage reference?

±0.2%.

What is the temperature coefficient?

30ppm/°C.

What is the input voltage range?

2.7V to 12.6V.

What is the supply current?

35µA typical.

What is the operating temperature range?

-40°C to 85°C.

What package is the MAX6023EBT25-T available in?

5-WFBGA, CSPBGA.
