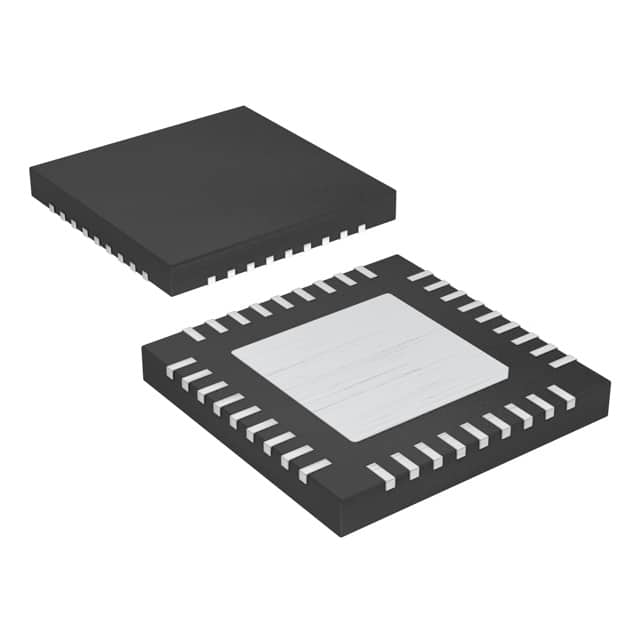

The MAX5954LETX+T is a Hot Plug Controller designed for PCI Express applications. Manufactured by Analog Devices/Maxim Integrated, this component features 3 channels and supports both internal switches. It operates within a supply voltage range of 3V to 3.6V and also 10.8V to 13.2V, with an operating temperature range of -40°C to 85°C.
Key features include Latched Fault, Overvoltage Protection (OVP), SMBus communication, Thermal Limit, and Undervoltage Lockout (UVLO). Programmable features include Current Limit and Fault Timeout, offering flexibility in system design. The device is housed in a 36-WFQFN Exposed Pad package, suitable for surface mounting.
This controller is designed for applications requiring safe insertion and removal of components from live backplanes, such as in PCI Express systems. Its robust feature set helps protect the system from power-related faults during hot-plug events.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device supports dual supply voltage ranges: 3V to 3.6V and 10.8V to 13.2V.
-40°C to 85°C.
3 channels.
Latched fault, overvoltage protection (OVP), SMBus, thermal limit, and undervoltage lockout (UVLO).
Current limit and fault timeout.
36-WFQFN exposed pad, supplier package 36-TQFN (6x6mm).
Both (likely high-side and low-side).
