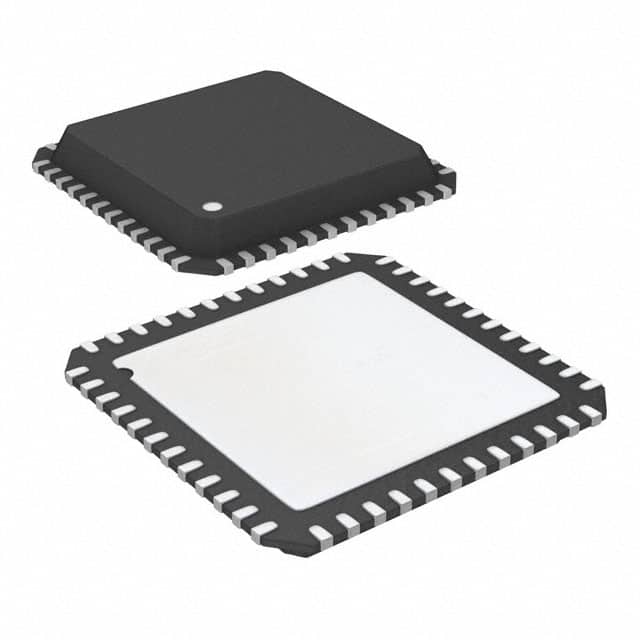

The MAX5885EGM+D is an advanced 16-bit, 200Msps digital-to-analog converter (DAC) designed for demanding signal synthesis applications. Operating from a single 3.3V supply, this DAC provides exceptional dynamic performance, including 77dBc spurious-free dynamic range (SFDR) at 10MHz output frequency.
This device utilizes a current-steering architecture, supporting a full-scale output current range of 2mA to 20mA and a differential output voltage swing between 0.1V P-P and 1V P-P. It features an integrated 1.2V bandgap reference for high accuracy and low noise, with an option for an external reference for increased flexibility.
The MAX5885EGM+D is designed for CMOS-compatible digital and clock inputs. It is available in a 48-pin QFN package with an exposed paddle and is specified for the extended industrial temperature range of -40°C to +85°C. Its applications include wireless base stations, communications, digital signal synthesis, and automated test equipment.
Key electrical specifications include a 200Msps output update rate, 3.3V single supply operation, excellent SFDR and IMD performance, and low power dissipation of less than 200mW. The DAC offers a settling time of 11ns (typical) and supports parallel data interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX5885EGM+D has a resolution of 16 bits.
The MAX5885EGM+D supports an output update rate of 200Msps.
The device operates from a single 3.3V supply.
The spurious-free dynamic range (SFDR) is 77dBc at an output frequency of 10MHz.
The full-scale output current range is from 2mA to 20mA.
The operating temperature range is -40°C to +85°C.
It is supplied in a 48-pin QFN package with an exposed paddle.
