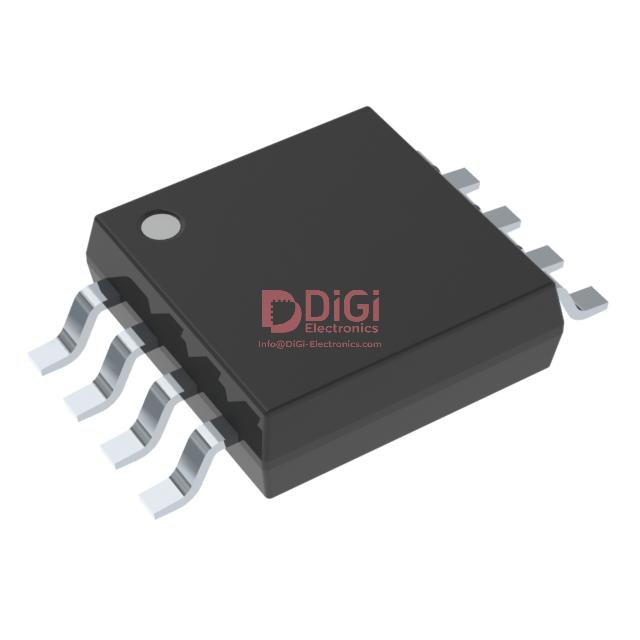

MAX549AEUA-T The MAX549AEUA-T is an 8-bit dual voltage-output digital-to-analog converter from Analog Devices / Maxim Integrated. It features a single +2.5V to +5.5V supply operation and a 3-wire SPI serial interface.
Mfr Part #:

MAX549AEUA-T

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX549AEUA-T is an 8-bit dual voltage-output digital-to-analog converter from Analog Devices / Maxim Integrated. It features a single +2.5V to +5.5V supply operation and a 3-wire SPI serial interface.
✓ Total Stock: 16,436 pcs
$ Price Range: $8.70

MAX549AEUA-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
16,436 pcs
On Request
16436 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX549AEUA-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
INL
Lead Spacing
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

MAX549AEUA-T Description

Short technical summary and product information.

The MAX549AEUA-T is an 8-bit dual voltage-output digital-to-analog converter (DAC) designed for single-supply operation from +2.5V to +5.5V. It offers a ±1 LSB Total Unadjusted Error (TUE) specification guaranteed over temperature. The device utilizes a 3-wire serial interface compatible with SPI, QSPI, and Microwire standards, operating at speeds up to 10MHz.



With a low operating current of typically 150µA for the dual DAC configuration (VREF = +2.5V) and a shutdown mode current of less than 1µA, the MAX549AEUA-T is suitable for battery-powered applications. It features double-buffered inputs for flexible updates and an external reference input. The DACs can be shut down independently, enhancing power management.



Packaged in an 8-pin µMAX package, which is 50% smaller than an 8-pin SO package, this DAC is ideal for space-constrained designs. Its applications include battery-powered systems, VCXO control, comparator-level settings, GaAs amp bias control, and digital gain and offset control.



The MAX549AEUA-T operates within a temperature range of -40°C to +85°C and is available in a surface mount configuration.

MAX549AEUA-T Quick Information

Product Type: Digital to Analog Converter (DAC)
Canonical Name: Analog Devices / Maxim Integrated MAX549AEUA-T 8-Bit Dual Voltage Output DAC
Subcategory: DAC

MAX549AEUA-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX549AEUA-T Estimated Pricing

Qty Low High
1+ $8.70 $8.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX549AEUA-T Features

  • 8-bit resolution, dual voltage output DAC.
  • Operates from a single 2.5V to 5.5V supply.
  • 10MHz, 3-wire SPI serial interface.
  • Low power consumption, 1µA shutdown mode.
  • Compact 8-pin µMAX package.

MAX549AEUA-T Applications

  • Ideal for battery-powered systems.
  • Used for VCXO control applications.
  • Suitable for comparator-level settings.
  • Applicable for GaAs amp bias control.
  • Enables digital gain and offset control.

MAX549AEUA-T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MAX549AEUA-T?

The MAX549AEUA-T operates from a 2.5V to 5.5V supply.

What package type is the MAX549AEUA-T available in?

The MAX549AEUA-T is available in an 8-uMAX/uSOP package and an 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) package.

What is the operating temperature range for the MAX549AEUA-T?

The operating temperature range for the MAX549AEUA-T is -40°C to +85°C.

What is the RoHS status of the MAX549AEUA-T?

The MAX549AEUA-T is RoHS3 Compliant.

How many DAC channels does the MAX549AEUA-T have?

The MAX549AEUA-T has 2 DAC channels.

What data interface does the MAX549AEUA-T use?

The MAX549AEUA-T uses an SPI data interface.
