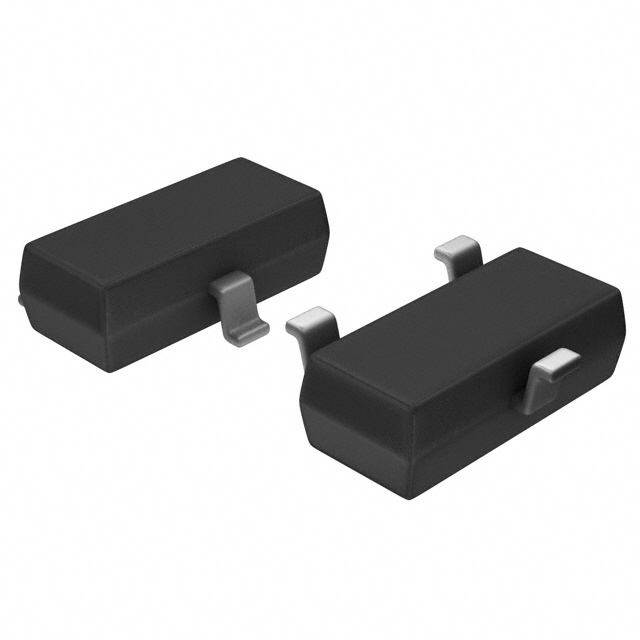

The Analog Devices MAX5491LC01000+T is a precision resistor-divider network featuring two accurately matched resistors. It provides a resistance of 15kΩ per element with a tight matching ratio of ±0.1% and a low resistor-ratio temperature drift of 2ppm/°C.
Designed for precision gain-setting applications, this network operates over an extended temperature range of -40°C to +85°C. It includes ±2kV Human Body Model ESD protection for enhanced robustness. The device is housed in a compact 3-pin SOT-23 package, making it suitable for space-constrained designs.
Key electrical specifications include a power rating of 87.5mW per element and an operating voltage of up to 50V across the sum of R1 and R2. The circuit type is a voltage divider, suitable for applications requiring TCR matched voltage division.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 15kΩ.
The resistor matching ratio accuracy is ±0.1%.
The resistor ratio drift is 2ppm/°C.
The operating temperature range is -40°C to +85°C.
There are 2 resistors in this network.
The package is SOT-23-3.
The power per element is 87.5mW.
