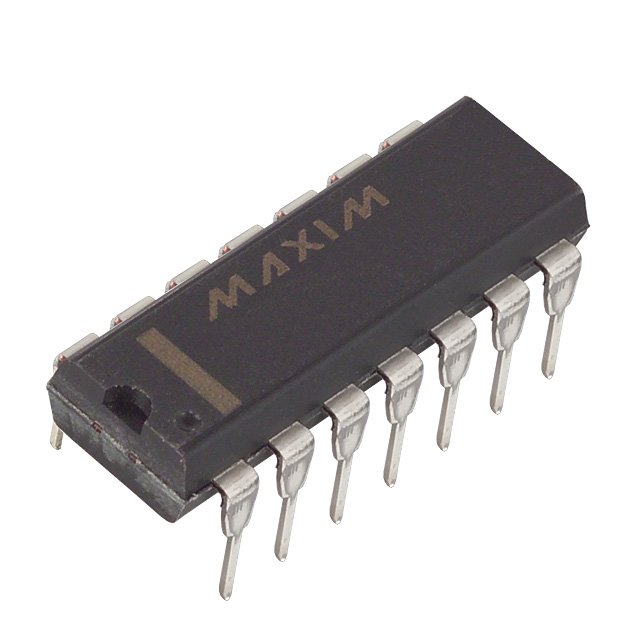

The MAX542AEPD is a 16-bit Digital to Analog Converter (DAC) manufactured by Analog Devices Inc./Maxim Integrated. This component is designed for voltage output applications and utilizes an R-2R architecture. It supports an SPI data interface and requires external voltage references.
The device operates within a temperature range of -40°C to 85°C and has a settling time of 1µs. It is supplied in a 14-DIP package with a 0.300-inch lead spacing. The analog and digital supply voltages are both rated at 5V. The linearity error (INL/DNL) is specified as ±0.5 LSB.
This DAC is suitable for various data acquisition and signal processing applications where precise digital-to-analog conversion is required. Its 16-bit resolution offers a good balance between accuracy and performance for many electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX542AEPD has a 16-bit resolution.
The typical settling time is 1µs.
It uses an SPI interface.
The operating temperature range is -40°C to +85°C.
Both the analog and digital supplies require 5V.
It is available in a 14-lead DIP package (0.300, 7.62mm body width).
