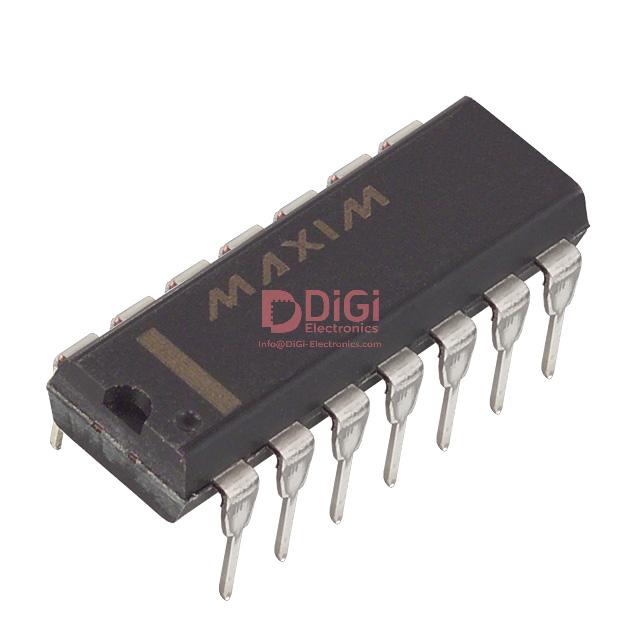

MAX542ACPD The MAX542ACPD from Analog Devices Inc. is a 16-bit digital-to-analog converter. It features a voltage output and an SPI data interface.
Mfr Part #:

MAX542ACPD

Available from 1 distributors
Mfr Name: AD
AD
The MAX542ACPD from Analog Devices Inc. is a 16-bit digital-to-analog converter. It features a voltage output and an SPI data interface.
✓ Total Stock: 800 pcs
$ Price Range: $0.99

MAX542ACPD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request On Request On Request 2026-02-23 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX542ACPD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
Lead Spacing
Lead Style
Mounting Type
Number of Bits
Output Type
Reference Type
Settling Time
Supplier Device Package
View Similar Products (0)

MAX542ACPD Description

Short technical summary and product information.

The MAX542ACPD is a 16-bit digital-to-analog converter (DAC) manufactured by Analog Devices Inc. This component offers a voltage output and utilizes an R-2R architecture. It operates with analog and digital supply voltages of 5V and features an SPI interface for data communication. The DAC has a settling time of 1µs (typical) and an integral nonlinearity (INL) and differential nonlinearity (DNL) of ±0.5 LSB. It is designed for operation within a temperature range of 0°C to 70°C.



The MAX542ACPD is housed in a 14-DIP package and is designed for through-hole mounting. Its product status is listed as Obsolete. This device is suitable for applications requiring precise digital-to-analog conversion within its specified operating parameters.

MAX542ACPD Quick Information

Product Type: Digital to Analog Converter (DAC)
Series: MAX542
Canonical Name: MAX542ACPD 16-Bit Voltage Output Digital-to-Analog Converter
Subcategory: DAC

MAX542ACPD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX542ACPD Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX542ACPD Features

  • 16-bit resolution digital-to-analog converter.
  • Features a voltage output type.
  • SPI serial data interface included.
  • Settling time is 1µs typical.
  • Operates at 5V analog and digital supplies.

MAX542ACPD Applications

  • Suitable for data acquisition systems.
  • Used in control signal generation.
  • Applications requiring precise voltage output.
  • Digital signal processing circuits.

MAX542ACPD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the MAX542ACPD?

16 bits.

How many DAC channels does it have?

1 channel.

What is the settling time?

1µs typical.

What is the operating temperature range?

0°C to 70°C.

What package is the MAX542ACPD available in?

14-DIP (0.300", 7.62mm) and 14-PDIP.

What is the supply voltage?

5V for both analog and digital supplies.

What data interface does it use?

SPI.
