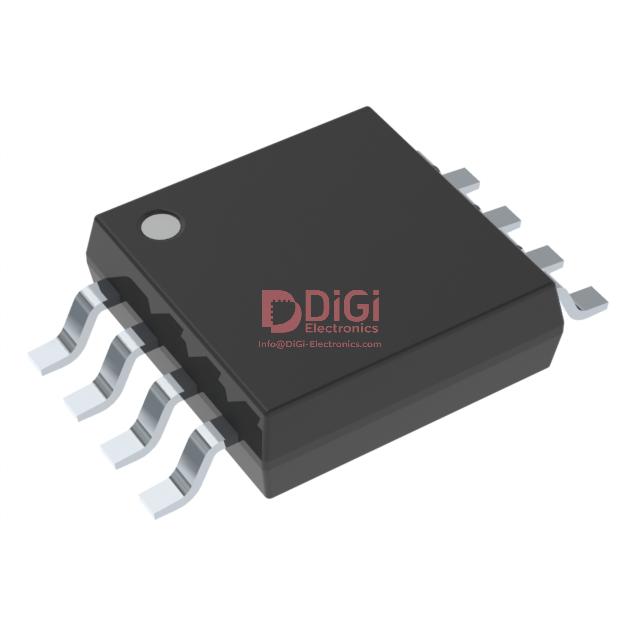

MAX5429EUA+ The MAX5429EUA+ is a digital potentiometer from Analog Devices / Maxim Integrated with 10kΩ resistance and 32 tap positions. It operates from a 2.7V to 5.5V supply.
Mfr Part #:

MAX5429EUA+

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX5429EUA+ is a digital potentiometer from Analog Devices / Maxim Integrated with 10kΩ resistance and 32 tap positions. It operates from a 2.7V to 5.5V supply.
✓ Total Stock: 95 pcs
$ Price Range: $1.36

MAX5429EUA+ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
95 pcs
On Request
95 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX5429EUA+ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Interface
Lead Spacing
Memory Type
Mounting Type
Number of Circuits
Number of Taps
Operating Temperature
Resistance
Resistance (Ohms)
Supplier Device Package
Tape & Reel
Taper
Temperature Coefficient
Temperature Coefficient (Typ)
Tolerance
Voltage
View Similar Products (0)

MAX5429EUA+ Description

Short technical summary and product information.

The MAX5429EUA+ is a linear-taper digital potentiometer designed to replace mechanical potentiometers with a simple 2-wire digital interface. It offers 32 distinct wiper positions and an end-to-end resistance of 10kΩ.



This device operates from a single supply voltage ranging from 2.7V to 5.5V and consumes less than 1.5µA of static supply current. It features a non-volatile memory type, allowing the wiper position to be stored after one-time fuse programming, enabling user-defined power-on reset positions or disabling further adjustments.



The MAX5429EUA+ is available in an 8-pin uMAX/uSOP package and is suitable for surface mount applications. It operates within an extended temperature range of -40°C to +85°C, making it a versatile component for various electronic designs.



Key electrical characteristics include a tolerance of ±25% and a typical temperature coefficient of 35ppm/°C. The interface is controlled via Up/Down (U/D, CS) signals.

MAX5429EUA+ Quick Information

Product Type: Digital Potentiometer
Canonical Name: MAX5429EUA+ Digital Potentiometer
Subcategory: Digital Potentiometers

MAX5429EUA+ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX5429EUA+ Estimated Pricing

Qty Low High
1+ $1.36 $1.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX5429EUA+ Features

  • 10kΩ resistance with 32 tap positions.
  • Operates from 2.7V to 5.5V single supply.
  • Linear taper digital potentiometer.
  • Non-volatile memory for wiper position.
  • 8-pin uMAX/uSOP surface mount package.

MAX5429EUA+ Applications

  • Used in calibration of electronic systems
  • Suitable for gain adjustment in amplifiers
  • Applied in data acquisition modules
  • Ideal for signal conditioning circuits

MAX5429EUA+ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the MAX5429EUA+?

The MAX5429EUA+ has a resistance of 10kΩ.

How many tap positions does the MAX5429EUA+ have?

The MAX5429EUA+ has 32 tap positions.

What is the operating voltage range for the MAX5429EUA+?

The MAX5429EUA+ operates from a 2.7V to 5.5V single supply.

What is the operating temperature range for the MAX5429EUA+?

The MAX5429EUA+ operates from -40°C to +85°C.

What type of interface does the MAX5429EUA+ use?

The MAX5429EUA+ uses an Up/Down (U/D, CS) interface.

What package is the MAX5429EUA+ available in?

The MAX5429EUA+ is available in an 8-uMAX/uSOP package.
