The Analog Devices MAX534BCPE+ is an 8-bit, quad digital-to-analog converter (DAC) designed for single-supply operation from +4.5V to +5.5V. It features internal precision buffers that swing rail-to-rail and a reference input range that includes both ground and the positive rail.
This DAC utilizes a serial interface compatible with SPI, QSPI, and Microwire standards, allowing for easy integration into digital systems. The double-buffered registers enable synchronous updating of DAC registers. Key electrical specifications include an ultra-low supply current of 0.8mA during operation and 2.5µA in shutdown mode, an 8µs settling time, and an INL/DNL of ±2 (Max), ±1 (Max).

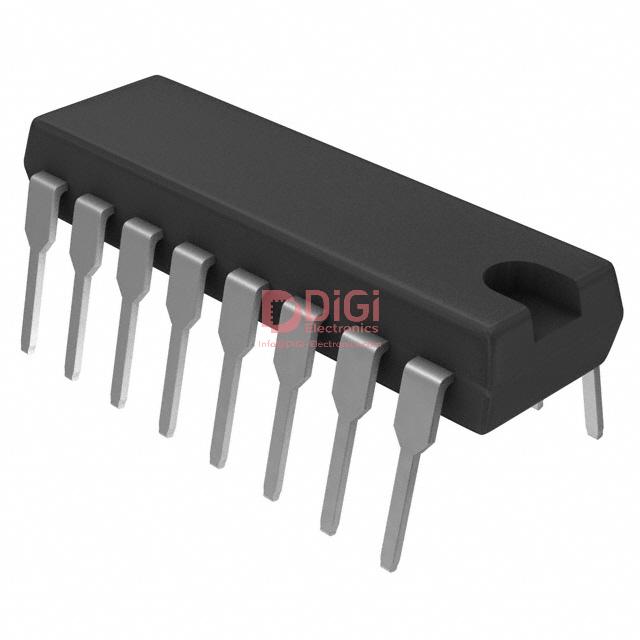

The MAX534BCPE+ is available in a 16-pin PDIP package, suitable for through-hole mounting. Its architecture supports applications such as digital gain and offset adjustments, programmable attenuators, and programmable current sources, making it a versatile component for portable instruments and other electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX534BCPE+ has an 8-bit resolution.
There are 4 digital-to-analog converters on the MAX534BCPE+.
The MAX534BCPE+ provides a voltage output that is buffered.
The data interface for the MAX534BCPE+ is SPI.
The MAX534BCPE+ operates from a single supply voltage range of +4.5V to +5.5V.
The typical settling time for the MAX534BCPE+ is 8µs.
The operating temperature range for the MAX534BCPE+ is 0°C to 70°C.
