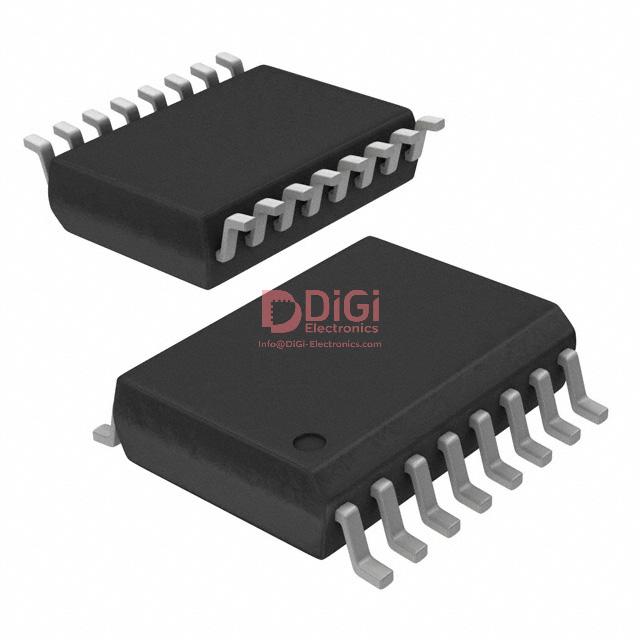

MAX532BEWE The MAX532BEWE is a 12-bit dual voltage output digital-to-analog converter with SPI interface and 2.5µs typical settling time.
Mfr Part #:

MAX532BEWE

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX532BEWE is a 12-bit dual voltage output digital-to-analog converter with SPI interface and 2.5µs typical settling time.
✓ Total Stock: 7,232 pcs
$ Price Range: $0.99

MAX532BEWE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
7,232 pcs
On Request
7232 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX532BEWE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
Lead Spacing
Lead Style
Number of Bits
Operating Temperature
Output Type
Reference Type
SVHC Present
Settling Time
Tape & Reel
View Similar Products (0)

MAX532BEWE Description

Short technical summary and product information.

The MAX532BEWE is a 12-bit resolution digital-to-analog converter (DAC) featuring two independent voltage output channels. It communicates via an SPI data interface and requires an external voltage reference. The device operates from dual analog supplies of ±11.4V to ±16.5V and is specified over the industrial temperature range of -40°C to +85°C.



The DAC uses an R-2R resistor ladder architecture and provides buffered voltage outputs. Typical settling time is 2.5µs. The device is offered in a 16-pin SOIC package, suitable for surface-mount assembly. Integral nonlinearity (INL) and differential nonlinearity (DNL) are each ±1 LSB maximum.

MAX532BEWE Quick Information

Product Type: Digital to Analog Converter (DAC)
Series: MAX532
Canonical Name: MAX532BEWE 12-Bit Dual Voltage Output Digital-to-Analog Converter
Subcategory: Voltage Output DAC

MAX532BEWE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX532BEWE Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX532BEWE Features

  • 12-bit resolution with dual voltage outputs.
  • SPI serial data interface for communication.
  • 2.5µs typical settling time for fast updates.
  • R-2R resistor ladder architecture for linearity.
  • Operates from ±11.4V to ±16.5V analog supplies.

MAX532BEWE Applications

  • Used in precision industrial control systems
  • Suitable for automated test equipment
  • Ideal for closed-loop servo control
  • Applied in waveform generation circuits
  • Used in data acquisition systems

MAX532BEWE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resolution of the MAX532BEWE?

The MAX532BEWE has 12-bit resolution.

How many DAC channels does the MAX532BEWE have?

The MAX532BEWE has 2 DAC channels.

What is the settling time of the MAX532BEWE?

The typical settling time is 2.5µs.

What is the operating temperature range of the MAX532BEWE?

The operating temperature range is -40°C to +85°C.

What package is the MAX532BEWE available in?

The MAX532BEWE is available in a 16-SOIC package.

What is the supply voltage requirement for the MAX532BEWE?

The analog supply voltage range is ±11.4V to ±16.5V.
