| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,245 pcs
|
5245 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The MAX510ACPE is a quad, serial-input, 8-bit voltage-output digital-to-analog converter (DAC) designed for flexible operation with single +5V or dual ±5V supplies. It features internal precision buffers that provide rail-to-rail output swing, and the reference input range includes both supply rails.
The device utilizes a double-buffered serial interface compatible with SPI, QSPI, and MICROWIRE standards, allowing for synchronous updating of DAC registers. It offers 8-bit resolution with a typical settling time of 6µs and integral nonlinearity (INL) of ±1 LSB (maximum). The MAX510ACPE has four DAC channels, each with an external reference type.

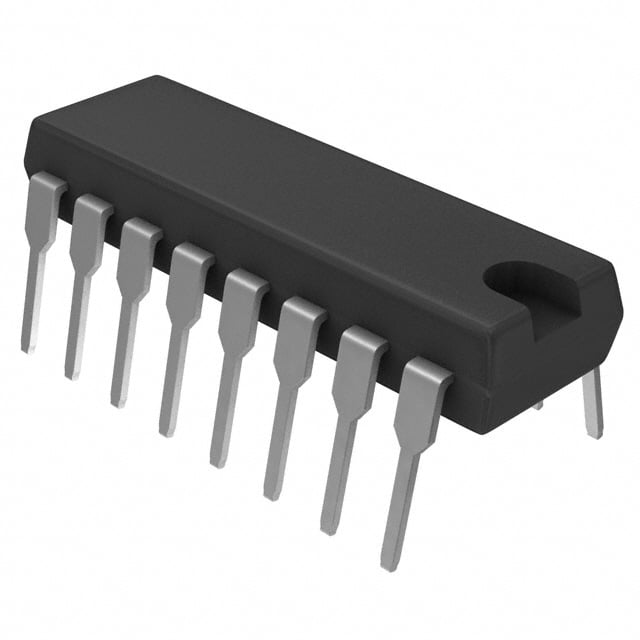

Packaged in a 16-pin DIP (0.300", 7.62mm) format, the MAX510ACPE is suitable for through-hole mounting. It operates within a temperature range of 0°C to 70°C. The digital inputs and outputs are TTL/CMOS compatible, and a buffered data output is provided for readback or daisy-chaining of serial devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX510ACPE has a resolution of 8 bits.
The MAX510ACPE features 4 digital-to-analog converter channels.
The typical settling time for the MAX510ACPE is 6 microseconds.
The MAX510ACPE provides a voltage output that is buffered.
The MAX510ACPE is compatible with SPI, QSPI, and MICROWIRE serial interfaces.
The MAX510ACPE can operate with a single +5V supply or dual ±5V supplies.
The MAX510ACPE operates within a temperature range of 0°C to 70°C.
