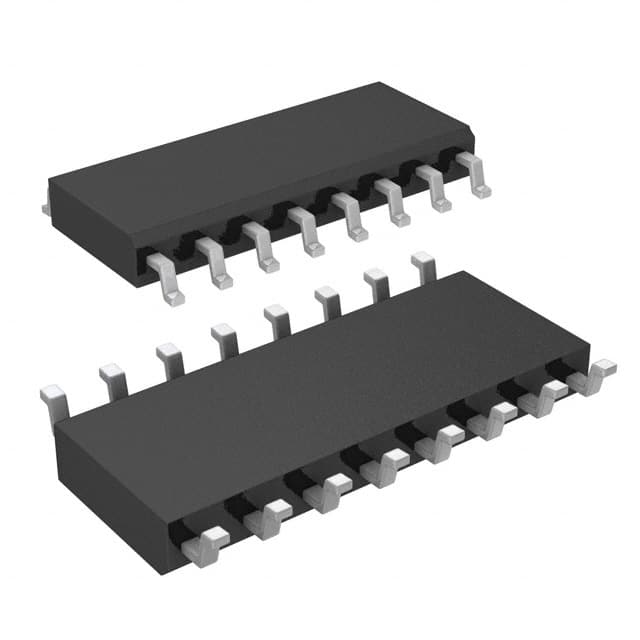

The MAX5003ESE is a Buck topology DC-DC controller IC manufactured by Analog Devices / Maxim Integrated. It is designed for step-down voltage regulation and offers positive, isolation-capable output configurations.
This controller operates with a supply voltage ranging from 10.75V to 18.75V and supports a switching frequency between 50kHz and 300kHz. The maximum duty cycle is 75%. It features control functions such as Frequency Control, On Time Control, and Soft Start. The device is not a synchronous rectifier and does not have clock synchronization capabilities.
The MAX5003ESE is housed in a 16-SOIC package and is designed for surface mounting. Its operating temperature range is -40°C to 85°C (TA). This part is listed as obsolete.
Environmental compliance includes RoHS3 compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 10.75V to 18.75V.
The switching frequency is adjustable from 50kHz to 300kHz.
The maximum duty cycle is 75%.
The output type is Transistor Driver.
The package is 16-SOIC (0.154" | 3.90mm Width).
The operating temperature range is -40°C to 85°C.
The topology is Buck (step-down).
