MAX4717EBC+T The MAX4717EBC+T is a dual SPDT analog switch from Analog Devices / Maxim Integrated, featuring low on-resistance and high bandwidth.
Mfr Part #:

MAX4717EBC+T

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX4717EBC+T is a dual SPDT analog switch from Analog Devices / Maxim Integrated, featuring low on-resistance and high bandwidth.
✓ Total Stock: 70,000 pcs
$ Price Range: $0.30

MAX4717EBC+T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
70,000 pcs
On Request
70000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX4717EBC+T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Logic Voltage
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Operating Voltage
Storage Temperature
Supplier Device Package
Supplier Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Tape & Reel
Voltage
View Similar Products (0)

MAX4717EBC+T Description

Short technical summary and product information.

The MAX4717EBC+T is a dual single-pole/double-throw (SPDT) analog switch designed for low-voltage applications. It operates from a single +1.8V to +5.5V supply and is suitable for USB 1.1 and audio switching.



This switch offers a low on-resistance of 4.5 Ohms (max) with excellent flatness and channel matching. It boasts a -3dB bandwidth exceeding 300MHz, making it suitable for high-frequency signals. The device provides break-before-make switching with fast turn-on and turn-off times.

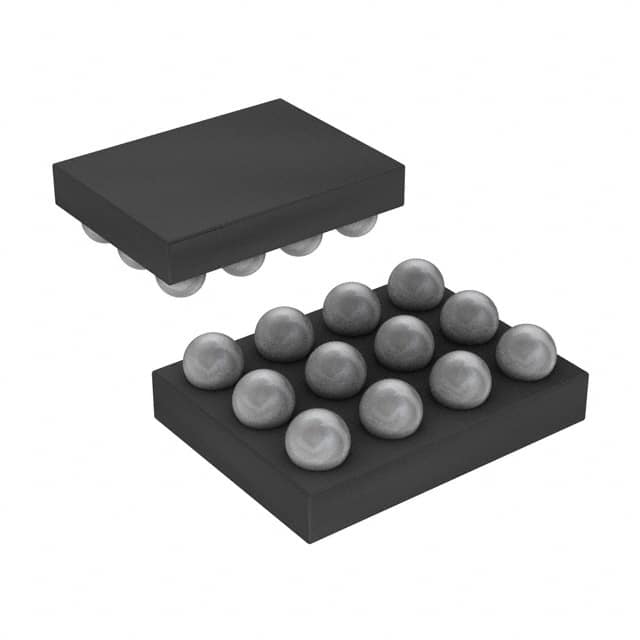

Packaged in a compact 12-UCSP (Chip-Scale Package), the MAX4717EBC+T significantly reduces PCB area requirements. It is designed for surface mount applications and operates across a wide temperature range of -40°C to +85°C.



Key electrical characteristics include low leakage current, low distortion, and high off-isolation, making it ideal for various signal routing and switching applications in battery-operated equipment, cell phones, and PDAs.

MAX4717EBC+T Quick Information

Product Type: Analog Switch
Canonical Name: MAX4717EBC+T Dual SPDT Analog Switch
Subcategory: SPDT

MAX4717EBC+T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX4717EBC+T Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX4717EBC+T Features

  • Dual SPDT analog switch.
  • Low 4.5 Ohm on-resistance.
  • High 300MHz bandwidth.
  • Compact 12-UCSP package.
  • Operates from 1.8V to 5.5V supply.

MAX4717EBC+T Applications

  • Suitable for USB 1.1 switching.
  • Ideal for audio signal routing.
  • Used in battery-operated devices.
  • Applicable in cell phones and PDAs.

MAX4717EBC+T FAQs

4 frequently asked questions generated from this part’s specifications.
What is the on-resistance of the MAX4717EBC+T?

The MAX4717EBC+T has a maximum on-resistance of 4.5 Ohms.

What is the operating voltage range for the MAX4717EBC+T?

The MAX4717EBC+T operates from a single supply voltage of +1.8V to +5.5V.

What package type is the MAX4717EBC+T supplied in?

The MAX4717EBC+T is supplied in a 12-UCSP package.

What is the operating temperature range for this analog switch?

The operating temperature range for the MAX4717EBC+T is -40°C to +85°C (TA).
