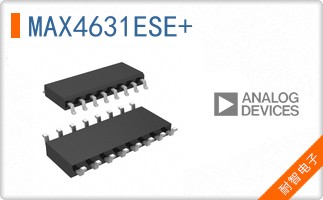

The MAX4631ESE from Analog Devices is a dual analog switch designed for high-voltage applications. It features two single-pole/single-throw normally open (SPST-NO) switches. This device offers fault protection and rail-to-rail signal handling capabilities.
Key electrical specifications include an on-resistance of 85 Ohms maximum at +25°C and matched resistance between switches to 6 Ohms maximum. It operates with dual power supplies ranging from ±4.5V to ±18V or a single supply from +9V to +36V. The switch time (Ton, Toff) is 150ns and 100ns respectively. Off-leakage current is as low as 0.5nA at +25°C.
The MAX4631ESE is housed in a 16-SOIC package and is designed for surface mount applications. It operates within an ambient temperature range of -40°C to +85°C. This device is pin-compatible with industry-standard DG401/DG403/DG405 switches, offering an upgrade path with enhanced fault protection.
Applications for this analog switch include ATE equipment, data acquisition systems, industrial and process control systems, avionics, and redundant/backup systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The on-resistance is 85 Ohms maximum at +25°C.
It operates with dual power supplies from ±4.5V to ±18V or a single supply from +9V to +36V.
The operating temperature range is -40°C to +85°C (TA).
The MAX4631ESE is available in a 16-SOIC package.
