| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120,533 pcs
|
120533 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
108,000 pcs
|
108000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Tape & Reel | |
| Voltage |
The MAX4618CSE is a high-speed, low-voltage CMOS analog IC configured as two 4-channel multiplexers. It operates continuously with a single +2V to +5.5V supply and can handle rail-to-rail analog signals.
Key electrical specifications include a guaranteed on-resistance of 10Ω max at a +5V supply and 20Ω max at a +3V supply. It offers fast switching times with tON of 15ns and tOFF of 10ns. The device exhibits low off-leakage current of 1nA at +25°C and low crosstalk of -96dB at 100kHz.
This component is suitable for applications such as battery-operated equipment, audio/video signal routing, low-voltage data-acquisition systems, and communications circuits. It is pin-compatible with industry-standard devices.

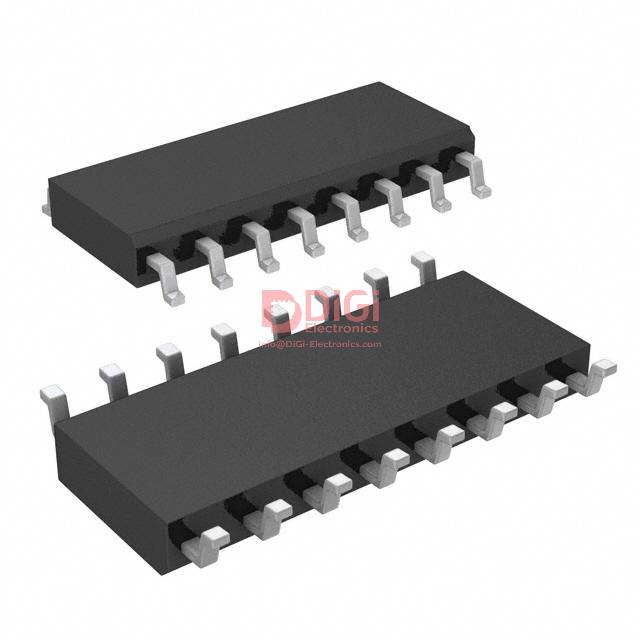

The MAX4618CSE is available in a 16-SOIC package and supports surface mount. Its operating temperature range is 0°C to 70°C (TA).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX4618CSE has a maximum on-resistance of 10 Ohms at a +5V supply and 20 Ohms at a +3V supply.
The MAX4618CSE operates with a single supply voltage ranging from 2V to 5.5V.
The operating temperature range for the MAX4618CSE is 0°C to 70°C (TA).
The MAX4618CSE is supplied in a 16-SOIC package.
The MAX4618CSE is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the MAX4618CSE is 1 Unlimited.
