| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,267 pcs
|
60267 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| ESD Protection | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Voltage |
The MAX4610EUD is a low-voltage, quad, single-pole/single-throw (SPST) analog switch designed for applications requiring efficient signal routing. It offers a guaranteed on-resistance of 100Ω maximum at a 5V supply, with on-resistance matched between channels to within 4Ω maximum and flat over the specified signal range.
This CMOS switch operates from a single +2V to +12V supply, making it suitable for battery-operated equipment and other low-voltage systems. Digital inputs are TTL/CMOS-logic compatible when using a single +5V supply. The device handles analog signal levels from V+ to GND and features low off-leakage current, only 1nA at +25°C and 2nA at +85°C.

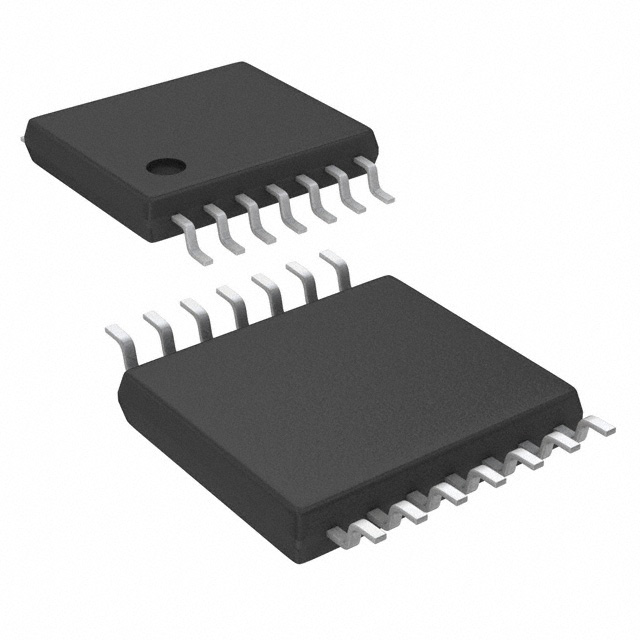

The MAX4610EUD is available in a 14-TSSOP surface-mount package. Its features include rail-to-rail signal handling and over 2kV ESD protection. The switch configuration consists of four normally open (NO) switches.
Applications for the MAX4610EUD include audio/video signal routing, low-voltage data-acquisition systems, sample-and-hold circuits, and communication circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX4610EUD has a maximum on-resistance of 100 Ohms at a 5V supply.
The MAX4610EUD operates from a single 2V to 12V supply.
The operating temperature range for the MAX4610EUD is -40°C to 85°C.
The MAX4610EUD is available in a 14-TSSOP package.
The MAX4610EUD contains 4 circuits.
The MAX4610EUD is a SPST - NO (Single Pole Single Throw - Normally Open) switch circuit.
