| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36,160 pcs
|
36160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,124 pcs
|
1124 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Tape & Reel | |
| Voltage |

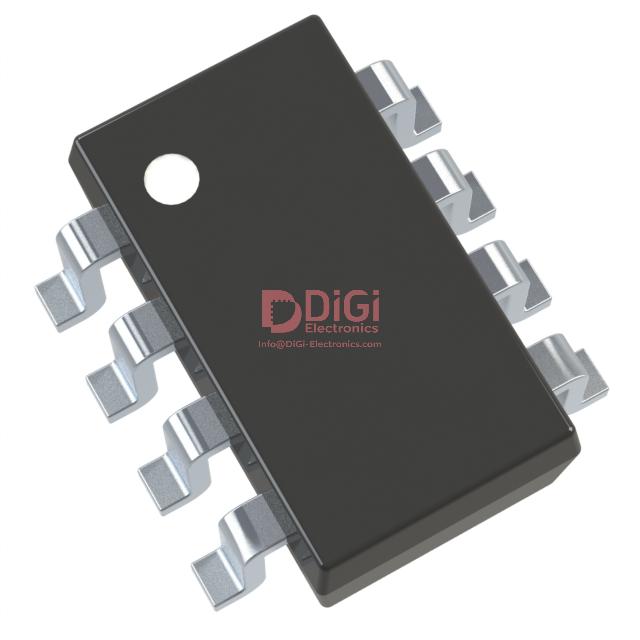

The MAX4564EKA-T is a single-pole, double-throw (SPDT) analog switch IC manufactured by Analog Devices Inc. This component is designed for interface applications and operates within a voltage range of ±1V to 6V.
Key electrical characteristics include a low on-resistance of 60 Ohms and a channel resistance of 750 mOhm. It features a switch time of 60ns (Ton) and 40ns (Toff), with a charge injection of 3pC. The switch offers a crosstalk of -72dB at 1MHz and a bandwidth of 450MHz. It also has a leakage current of 1nA and channel capacitance values of 6pF (CS(off)) and 8pF (CD(off)).
The device is housed in a SOT-23-8 package and is designed for surface mount applications. It operates within a temperature range of -40°C to 85°C (TA). The MAX4564EKA-T is specified as RoHS3 Compliant, with an MSL of 1 Unlimited, and REACH Unaffected status.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The on-resistance of the MAX4564EKA-T is 60 Ohms.
The bandwidth of the MAX4564EKA-T is 450MHz.
The MAX4564EKA-T is available in a SOT-23-8 package.
The operating temperature range for the MAX4564EKA-T is -40°C to 85°C (TA).
The MAX4564EKA-T is RoHS3 Compliant.
