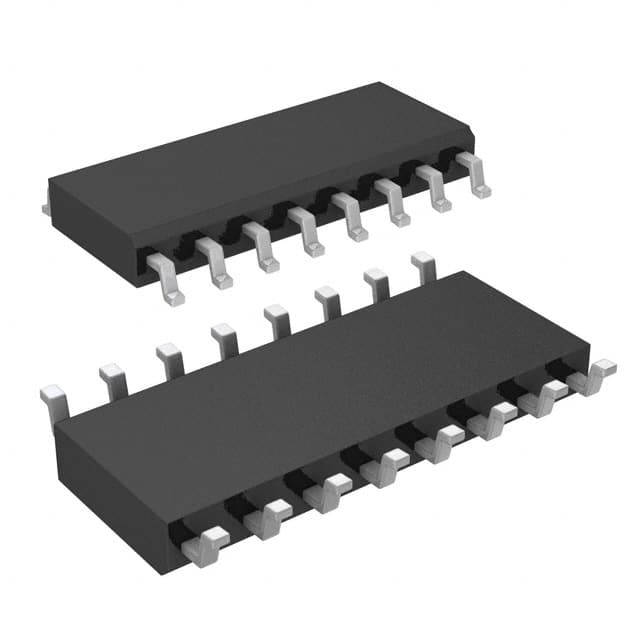

The MAX4546CSE is a low-voltage T-switch designed for switching RF and video signals from DC to 300MHz. It contains two dual SPST switches, each with one normally open and one normally closed configuration. Each switch is constructed in a "T" configuration, ensuring excellent high-frequency off isolation and crosstalk of -80dB at 10MHz.
This device can handle Rail-to-Rail analog signals in either direction. The on-resistance is a maximum of 20Ω with ±5V supplies and is matched between switches to 1Ω max. It is flat over the specified signal range (0.5Ω max). The off leakage current is less than 5nA at +25°C and 50nA at +85°C.
The MAX4546CSE can operate with dual power supplies ranging from ±2.7V to ±6V or a single supply between +2.7V and +12V. All digital inputs have 0.8V/2.4V logic thresholds, ensuring both TTL- and CMOS-logic compatibility when using ±5V or a single +5V supply.
It is available in a 16-SOIC package and is suitable for surface mount applications. Key features include low insertion loss, high off isolation, and low crosstalk, making it ideal for applications such as RF switching, video signal routing, high-speed data acquisition, test equipment, ATE equipment, and networking.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C (TA).
The maximum on-resistance is 20Ω.
It can operate with dual supplies from ±2.7V to ±6V or a single supply from +2.7V to +12V.
The -3dB signal bandwidth is 300MHz.
The MAX4546CSE is available in a 16-SOIC package.
