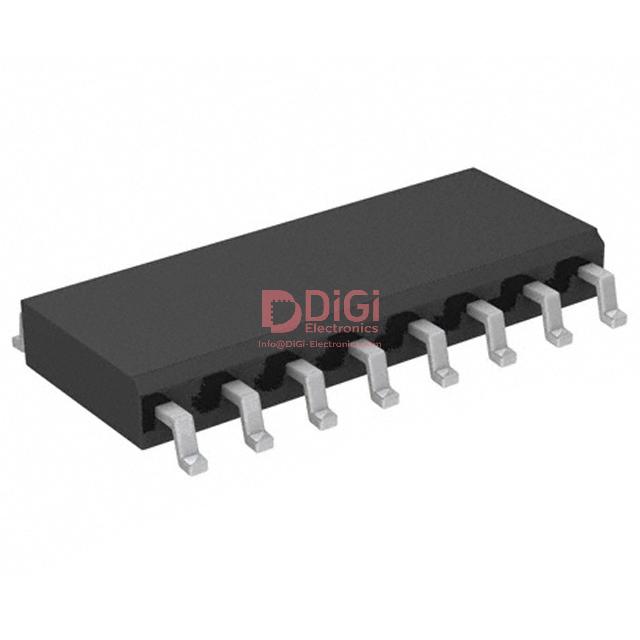

MAX4522CSE The MAX4522CSE is a quad, single-pole/single-throw (SPST) normally open analog switch from Analog Devices. It features 100 Ohm on-resistance and handles rail-to-rail analog signals.
Mfr Part #:

MAX4522CSE

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX4522CSE is a quad, single-pole/single-throw (SPST) normally open analog switch from Analog Devices. It features 100 Ohm on-resistance and handles rail-to-rail analog signals.
✓ Total Stock: 2,356 pcs
$ Price Range: $0.30

MAX4522CSE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,356 pcs
On Request
2356 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX4522CSE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Channel
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Supplier Device Package
Supplier Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Tape & Reel
Voltage
View Similar Products (0)

MAX4522CSE Description

Short technical summary and product information.

The MAX4522CSE is a quad, low-voltage, single-pole/single-throw (SPST) analog switch designed for applications requiring efficient signal routing. This device features four normally open (NO) switches, each capable of handling rail-to-rail analog signals. The on-resistance is specified at a maximum of 100 Ohms with ±5V supplies, and it is matched between switches to within 4 Ohms maximum.



Operating with dual power supplies ranging from ±2V to ±6V or a single supply between +2V and +12V, the MAX4522CSE offers flexibility for various system designs. Its low off-leakage current of only 1nA at +25°C and 10nA at +85°C minimizes power consumption. Digital inputs are TTL/CMOS-compatible, ensuring easy integration with common logic levels.



This analog switch is housed in a 16-SOIC package, suitable for surface mount applications. The operating temperature range is 0°C to 70°C (TA), with an extended range of -40°C to 85°C also specified. Its pin configuration is compatible with industry-standard DG211/DG212/DG213 devices.

MAX4522CSE Quick Information

Product Type: Analog Switch
Canonical Name: MAX4522CSE Quad SPST NO Analog Switch
Subcategory: SPST

MAX4522CSE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX4522CSE Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX4522CSE Features

  • Quad SPST normally open analog switches.
  • 100 Ohm maximum on-resistance.
  • Operates on single or dual power supplies.
  • Low off-leakage current.
  • 16-SOIC surface mount package.

MAX4522CSE Applications

  • Suitable for battery-operated equipment.
  • Used in data acquisition systems.
  • Applicable for test equipment.
  • Ideal for audio signal routing.
  • Can be used in networking applications.

MAX4522CSE FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum on-resistance of the MAX4522CSE?

The maximum on-resistance is 100 Ohm.

What is the switch time for the MAX4522CSE?

The maximum switch time is 30 nanoseconds.

What supply voltage range does the MAX4522CSE operate within?

It operates from 2V to 12V.

What package type is used for the MAX4522CSE?

It is available in a 16-SOIC surface mount package.

Is the MAX4522CSE RoHS compliant?

Yes, it is RoHS3 compliant.
