| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,067 pcs
|
15067 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | 1202 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Spacing | |
| Lead Style | |
| Number of Circuits | |
| Output Type | |
| Slew Rate |

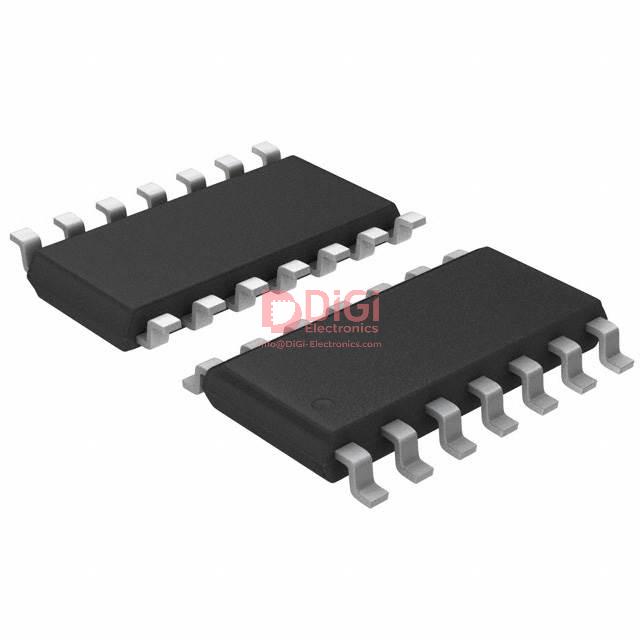

The MAX4478ASD+ is a general-purpose operational amplifier manufactured by Analog Devices. This component features 4 circuits within a single package, designed for versatile applications. It offers a push-pull, rail-to-rail output configuration, enhancing signal integrity.
Key electrical specifications include a gain bandwidth product of 10 MHz and a slew rate of 3V/µs. The amplifier exhibits a low input bias current of 1 pA and an input offset voltage of 70 µV. The current consumption is rated at 2.5mA per channel, with an output current capability of 48 mA per channel.
Operating within a supply voltage span of 2.7V to 5.5V, the MAX4478ASD+ is suitable for a wide range of electronic designs. It is housed in a 14-SOIC package, designed for through-hole mounting.
This amplifier is ideal for instrumentation, buffer amplifier, and general-purpose amplification tasks where precise signal handling and low power consumption are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The gain bandwidth product is 10 MHz.
The slew rate is 3 V/µs.
The input bias current is 1 pA.
The input offset voltage is 70 µV.
The voltage supply span is from 2.7 V to 5.5 V.
There are 4 circuits.
It has a Push-Pull, Rail-to-Rail output.
