| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,089 pcs
|
20089 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Automotive Grade | |
| Bandwidth | |
| Failure Rate | |
| Mounting Type | |
| Number of Circuits | |
| Quiescent Current | |
| Slew Rate | |
| Supply Current |
The MAX4376HAUK/V+T is a current sense amplifier designed for various applications. It operates within a wide supply voltage range, from a minimum of 3V to a maximum of 28V. The device features a typical slew rate of 10V/µs and a bandwidth of 1.2 MHz (-3 dB).
This amplifier is suitable for operation across a broad temperature spectrum, from -40°C to 125°C. It requires a typical supply current of 1mA and a quiescent current of 800 µA. The unit contains a single circuit and is classified as a current sense amplifier.

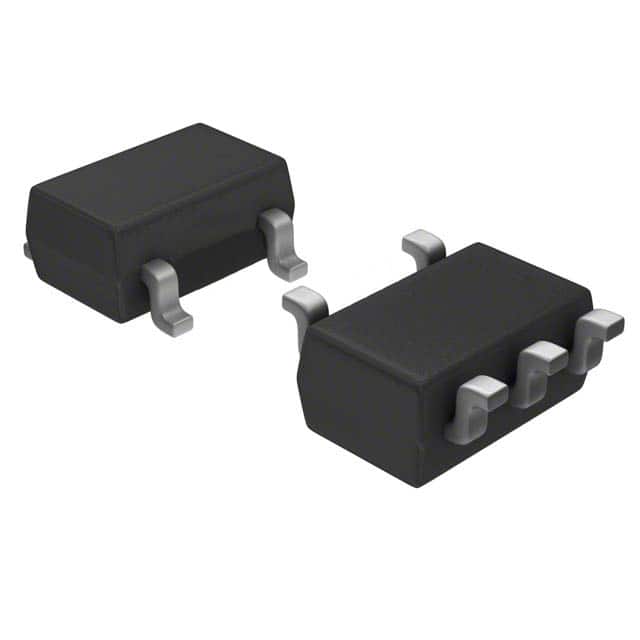

The MAX4376HAUK/V+T is available in a SOT-23-5 package, also referred to as SC-74A, SOT-753. It is designed for surface mount applications and comes in a Tape & Reel (TR) package.
This component is part of the Automotive, AEC-Q100 series, indicating its suitability for automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX4376HAUK/V+T operates with a supply voltage ranging from 3V (minimum) to 28V (maximum).
The MAX4376HAUK/V+T is designed to operate within a temperature range of -40°C to 125°C.
The MAX4376HAUK/V+T is available in SOT-23-5 and SC-74A, SOT-753 packages.
The typical slew rate for this amplifier is 10 V/µs.
The bandwidth of the MAX4376HAUK/V+T is 1.2 MHz at -3 dB.
The MAX4376HAUK/V+T contains 1 circuit.
The typical supply current for the MAX4376HAUK/V+T is 1 mA.
