| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,873 pcs
|
32873 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| SVHC Present | |
| Slew Rate | |
| Supply Current |

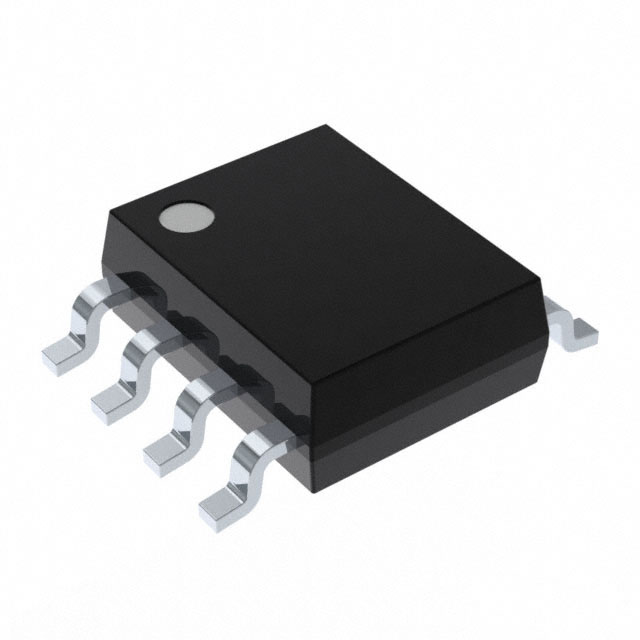

The MAX4180ESA is a current feedback operational amplifier designed for high-speed applications. It operates with a supply voltage ranging from 4.5V to 11V and consumes a low supply current of 1mA. This amplifier features a significant -3dB bandwidth of 245 MHz and a fast slew rate of 450V/µs, making it suitable for demanding signal processing tasks.
With an output current capability of 60 mA and an input offset voltage of 1.5 mV, the MAX4180ESA provides robust performance. It is available in a compact 8-SOIC surface mount package, facilitating integration into various electronic designs. The operating temperature range is from -40°C to 85°C, ensuring reliability in diverse environmental conditions.
This operational amplifier is categorized under Integrated Circuits (ICs) and specifically within the Audio Special Purpose subcategory. Its specifications make it a versatile component for applications requiring high-speed amplification and signal conditioning.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The -3dB bandwidth is 245 MHz.
The slew rate is 450 V/µs.
The supply current is 1 mA.
The supply voltage range is 4.5 V to 11 V.
The operating temperature range is -40°C to 85°C.
It is a current feedback amplifier.
It is in an 8-SOIC surface mount package with dimensions 0.154" x 3.90mm.
