| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90,400 pcs
|
90400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Slew Rate |

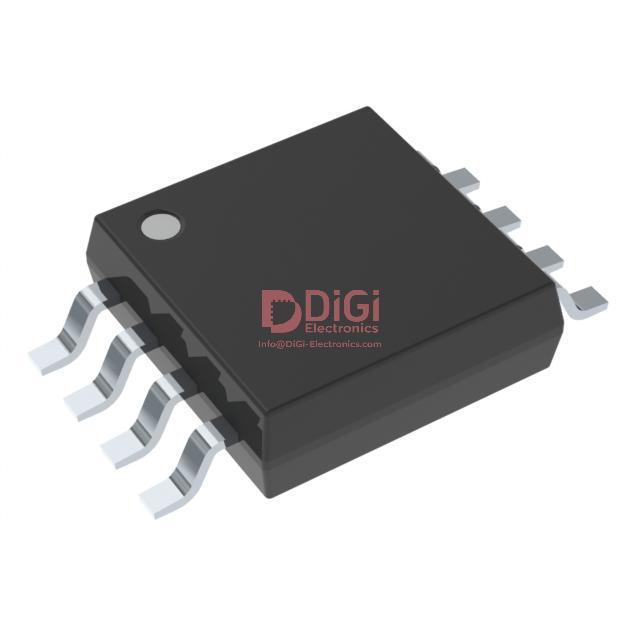

The Analog Devices MAX4077EUA is a versatile general purpose amplifier designed for various applications. It integrates two independent amplifier circuits, each offering rail-to-rail output capabilities.
Key electrical specifications include a gain bandwidth product of 230 kHz and a low input offset voltage of 1.2 mV. The amplifier draws a minimal supply current of 45µA per channel and can deliver up to 20 mA per channel. It operates efficiently within a supply voltage range of 2.5V to 5.5V.
This component is housed in a compact 8-uMAX/uSOP surface-mount package, making it suitable for space-constrained designs. The operating temperature range is -40°C to 70°C, ensuring reliable performance in diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The gain bandwidth product is 230 kHz.
The input offset voltage is 1.2 mV.
The operating supply voltage range is from 2.5 V to 5.5 V.
The package is 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
The operating temperature range is -40°C to 70°C.
