MAX4051AESE The MAX4051AESE is an 8:1 CMOS analog multiplexer from Analog Devices/Maxim Integrated. It operates with dual supplies from ±2.7V to ±8V and features low on-resistance.
Mfr Part #:

MAX4051AESE

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX4051AESE is an 8:1 CMOS analog multiplexer from Analog Devices/Maxim Integrated. It operates with dual supplies from ±2.7V to ±8V and features low on-resistance.
✓ Total Stock: 5,750 pcs
$ Price Range: $0.30

MAX4051AESE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,750 pcs
On Request
5750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX4051AESE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Supplier Device Package
Supplier Package
Switch Time (Ton, Toff) (Max)
Voltage
View Similar Products (0)

MAX4051AESE Description

Short technical summary and product information.

The MAX4051AESE is a low-voltage CMOS analog IC configured as an 8-channel multiplexer. It is designed for applications requiring efficient signal routing in battery-operated equipment, audio/video systems, and data acquisition.



Key electrical specifications include a guaranteed on-resistance of 100 Ohms with ±5V supplies and a channel-to-channel match of 6 Ohms. It supports dual supply operation from ±2.7V to ±8V or single supply from +2V to +16V. The device exhibits low off-leakage current of 0.1nA at +25°C and low distortion of less than 0.04%.

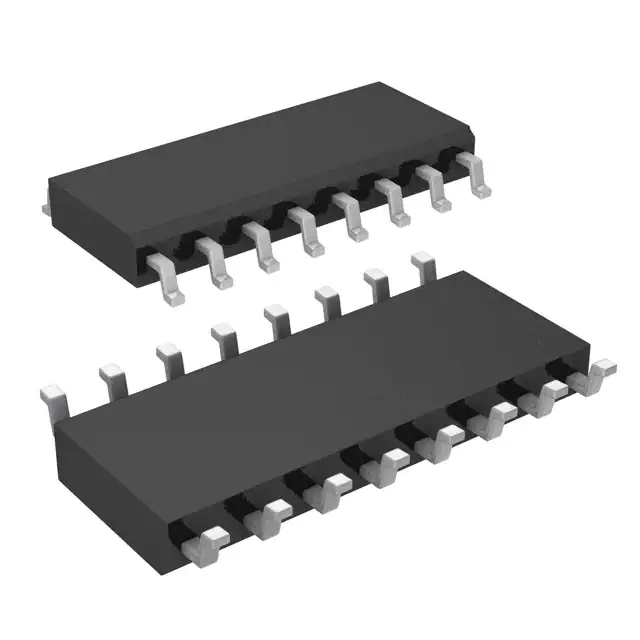

This multiplexer is housed in a 16-SOIC package and is suitable for surface mounting. It operates across a wide temperature range of -40°C to +85°C, making it versatile for various environmental conditions. The digital inputs are TTL/CMOS-logic compatible.



Applications include audio and video signal routing, low-voltage data-acquisition systems, and communications circuits. Its pin compatibility with industry-standard parts further simplifies integration into existing designs.

MAX4051AESE Quick Information

Product Type: Analog Switches, Multiplexers, Demultiplexers
Canonical Name: MAX4051AESE 8:1 CMOS Analog Multiplexer/Switch
Subcategory: Analog Switches, Multiplexers, Demultiplexers

MAX4051AESE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX4051AESE Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX4051AESE Features

  • 8:1 CMOS analog multiplexer configuration.
  • Guaranteed 100 Ohm on-resistance.
  • Dual supply operation from ±2.7V to ±8V.
  • Wide operating temperature range: -40°C to +85°C.
  • Surface mount 16-SOIC package.

MAX4051AESE Applications

  • Ideal for audio signal routing.
  • Suitable for video signal routing.
  • Used in data acquisition systems.
  • Applicable for communications circuits.

MAX4051AESE FAQs

5 frequently asked questions generated from this part’s specifications.
What is the on-resistance of the MAX4051AESE?

The MAX4051AESE has a guaranteed on-resistance of 100 Ohms with ±5V supplies.

What are the supply voltage ranges for the MAX4051AESE?

It supports single supply operation from +2V to +16V and dual supply operation from ±2.7V to ±8V.

What is the operating temperature range for this analog switch?

The MAX4051AESE operates from -40°C to +85°C.

What package type is the MAX4051AESE available in?

The MAX4051AESE is available in a 16-SOIC package suitable for surface mounting.

What is the RoHS status of the MAX4051AESE?

The RoHS status is RoHS3 Compliant.
