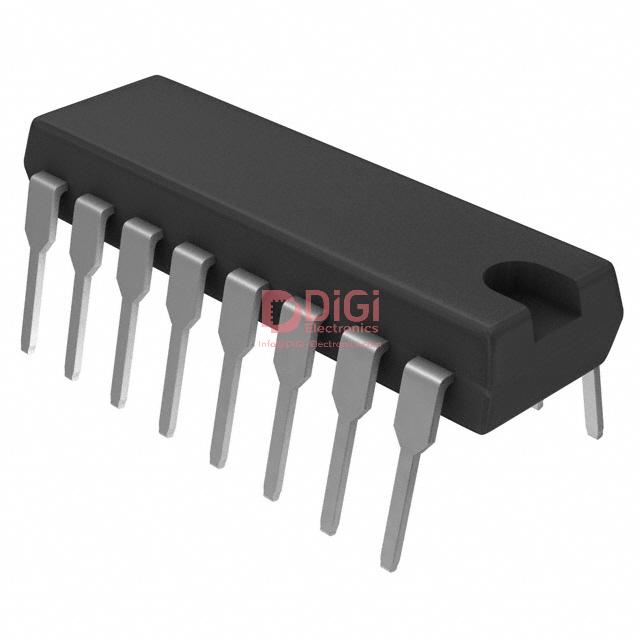

The MAX383CPE+ is a precision, low-voltage analog switch from Analog Devices, fabricated using a low-voltage silicon-gate process. This dual single-pole double-throw (SPDT) switch features low on-resistance, typically 20 Ohms and a maximum of 35 Ohms, with guaranteed matching between channels to within 2 Ohms. It maintains flat on-resistance over the specified analog signal range, with a maximum variation of 4 Ohms.
Designed for versatility, the MAX383CPE+ supports single-supply operation from +3V to +15V or dual-supply operation from ±3V to ±8V, while maintaining CMOS-logic input compatibility. It offers fast switching speeds with turn-on times less than 175ns and turn-off times less than 100ns. The device exhibits low leakage current, less than 250pA at +25°C and less than 2.5nA at +85°C, and low charge injection (<5pC).
This component is suitable for various applications including test equipment, battery-operated systems, and audio signal routing. It is supplied in a 16-pin PDIP package and is designed for through-hole mounting. The operating temperature range is 0°C to 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum on-resistance for the MAX383CPE+ is 35 Ohms.
The MAX383CPE+ can operate with a single supply voltage from +3V to +15V or with dual supplies from ±3V to ±8V.
The operating temperature range for the MAX383CPE+ is 0°C to 70°C.
The MAX383CPE+ is supplied in a 16-PDIP package.
The MAX383CPE+ contains 2 circuits.
The typical charge injection for the MAX383CPE+ is 2pC.
