MAX3485ECSA The Analog Devices MAX3485ECSA is a half-duplex RS-485/RS-422 transceiver designed for reliable communication. It operates from a 3.3V supply and supports data rates up to 12Mbps.
Mfr Part #:

MAX3485ECSA

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices MAX3485ECSA is a half-duplex RS-485/RS-422 transceiver designed for reliable communication. It operates from a 3.3V supply and supports data rates up to 12Mbps.
✓ Total Stock: 179,364 pcs
$ Price Range: $1.44

MAX3485ECSA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
164,364 pcs
On Request
164364 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX3485ECSA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Lead Spacing
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Receiver Hysteresis
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

MAX3485ECSA Description

Short technical summary and product information.

The MAX3485ECSA from Analog Devices (formerly Maxim Integrated) is a low-power, ±15kV ESD-protected transceiver for RS-485 and RS-422 communication.



This device features a single driver and receiver, supporting half-duplex communication at data rates up to 12Mbps. It operates from a single +3.3V supply and is interoperable with +5V logic. The transceiver includes enhanced ESD protection on its I/O pins, safeguarding against ±15kV Human Body Model discharges and ±8kV IEC 1000-4-2 contact discharges.



Drivers are protected against short-circuit currents and thermal shutdown. The receiver input has a fail-safe feature that ensures a logic-high output if both inputs are open. The MAX3485ECSA is suitable for applications requiring robust serial communication, such as industrial control and telecommunications.

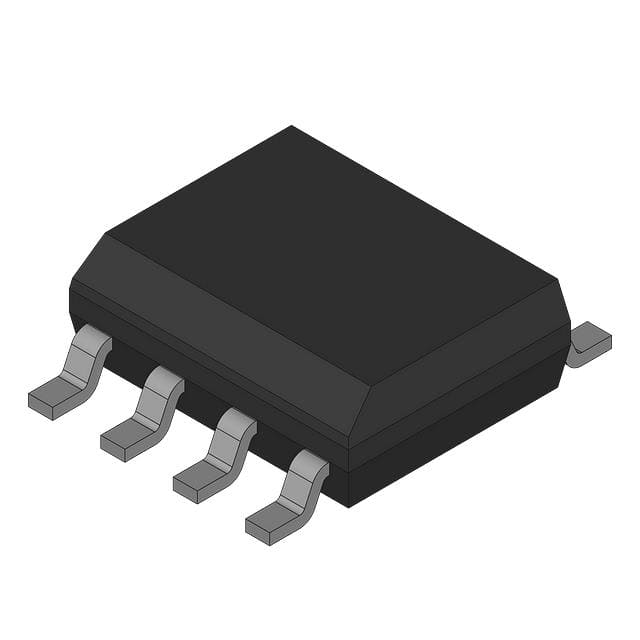

Packaged in an 8-pin SOIC surface-mount package, this transceiver is designed for ease of integration into various electronic systems.

MAX3485ECSA Quick Information

Product Type: RS-485/RS-422 Transceiver
Canonical Name: MAX3485ECSA RS-485/RS-422 Transceiver
Subcategory: Interface

MAX3485ECSA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX3485ECSA Estimated Pricing

Qty Low High
1+ $1.44 $1.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX3485ECSA Features

  • Supports RS-485 and RS-422 protocols.
  • 12Mbps maximum data rate capability.
  • Half-duplex communication mode.
  • Operates from a single 3.3V supply.
  • ±15kV ESD protection on I/O pins.

MAX3485ECSA Applications

  • Ideal for industrial control systems.
  • Suitable for telecommunications networks.
  • Used in local area networks.
  • Robust for EMI-sensitive applications.

MAX3485ECSA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the data rate for the MAX3485ECSA transceiver?

The MAX3485ECSA supports data rates up to 12Mbps.

What type of communication does the MAX3485ECSA support?

The MAX3485ECSA supports half-duplex communication.

What is the operating voltage for the MAX3485ECSA?

The MAX3485ECSA operates from a 3V to 3.6V supply, typically 3.3V.

What is the operating temperature range of the MAX3485ECSA?

The operating temperature range for the MAX3485ECSA is 0°C to 70°C.

What ESD protection is provided by the MAX3485ECSA?

The MAX3485ECSA provides ±15kV ESD protection via the Human Body Model and ±8kV via IEC 1000-4-2 contact discharge.

What package is the MAX3485ECSA supplied in?

The MAX3485ECSA is supplied in an 8-SOIC package.
