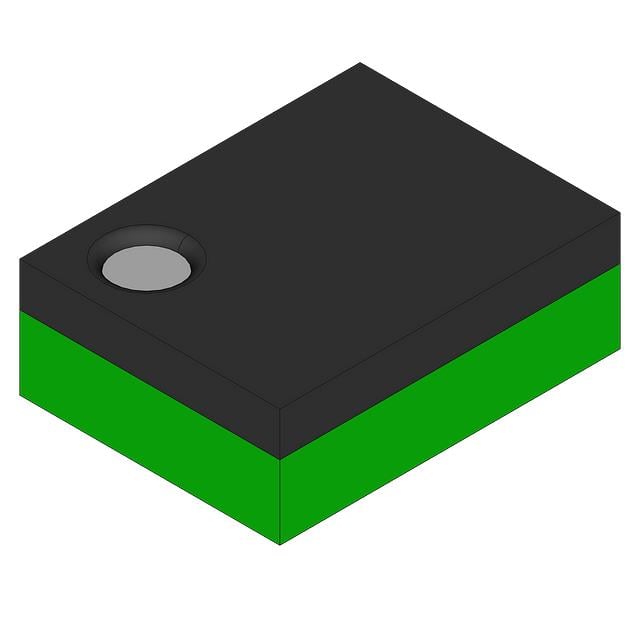

MAX3392EEBC The MAX3392EEBC from Analog Devices Inc./Maxim Integrated is a QUAD LOW-VOLT LEVEL TRANSLATOR. It operates with VCCA voltages from 1.65V to 5.5V and VCCB voltages from 1.2V to 5.5V.
Mfr Part #:

MAX3392EEBC

Available from 1 distributors
Mfr Name: NA
NA
The MAX3392EEBC from Analog Devices Inc./Maxim Integrated is a QUAD LOW-VOLT LEVEL TRANSLATOR. It operates with VCCA voltages from 1.65V to 5.5V and VCCB voltages from 1.2V to 5.5V.
✓ Total Stock: 827 pcs

MAX3392EEBC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
827 pcs
On Request
827 pcs On Request 1 On Request On Request 02+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX3392EEBC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Channels per Circuit
Data Rate
Mounting Type
Number of Circuits
Operating Temperature
Output Type
Translator Type
View Similar Products (0)

MAX3392EEBC Description

Short technical summary and product information.

The MAX3392EEBC is a QUAD LOW-VOLT LEVEL TRANSLATOR manufactured by Analog Devices Inc./Maxim Integrated. This component is designed for voltage level translation applications, supporting VCCA voltages ranging from 1.65V to 5.5V and VCCB voltages from 1.2V to 5.5V.



With a data rate of 8Mbps, the MAX3392EEBC is suitable for various interface applications. It features unidirectional channels and a tri-state, non-inverted output type. The device operates within a temperature range of -40°C to 85°C.



This level translator is available in a 12-WFBGA, CSPBGA package and is designed for surface mount installation. Its robust specifications make it a versatile choice for designs requiring reliable voltage level shifting.

MAX3392EEBC Quick Information

Product Type: Level Translator
Canonical Name: MAX3392EEBC QUAD LOW-VOLT LEVEL TRANSLATOR
Subcategory: Drivers, Receivers, Transceivers

MAX3392EEBC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX3392EEBC Features

  • QUAD LOW-VOLT LEVEL TRANSLATOR
  • VCCA 1.65V to 5.5V
  • VCCB 1.2V to 5.5V
  • 8Mbps Data Rate
  • Surface Mount Package

MAX3392EEBC Applications

  • Ideal for interfacing 3.3V and 1.8V domains.
  • Used in I2C or SPI level shifting.
  • Suitable for digital logic translation.
  • Can be used in mixed-voltage systems.
  • Applicable in sensor interfaces.

MAX3392EEBC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage range for VCCA?

1.65V to 5.5V.

What is the voltage range for VCCB?

1.2V to 5.5V.

What is the operating temperature range?

-40°C to 85°C.

What is the data rate of the MAX3392EEBC?

8Mbps.

How many channels does it have?

4 channels.

What is the package type?

12-WFBGA, CSPBGA.

Is the output tri-state?

Yes, tri-state and non-inverted.
