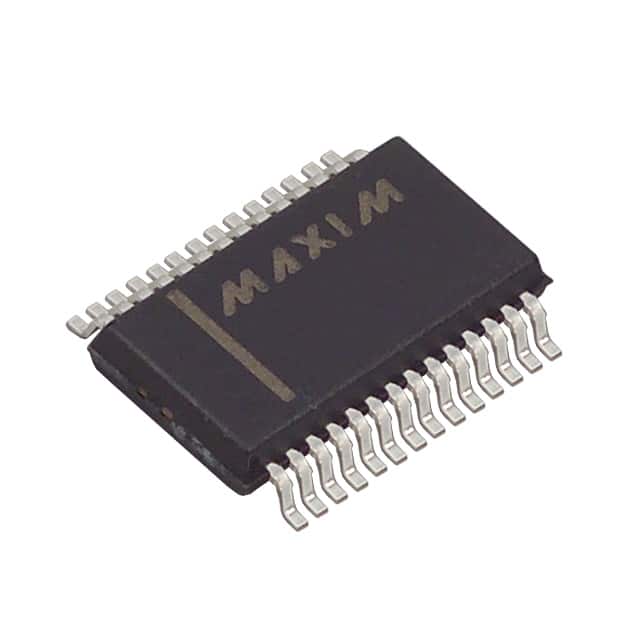

MAX3237EEAI The MAX3237EEAI is a 5/3 channel RS-232 transceiver from Analog Devices, operating from 3V to 5.5V. It is designed for surface mount applications in a 28-SSOP package.
Mfr Part #:

MAX3237EEAI

Available from 3 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX3237EEAI is a 5/3 channel RS-232 transceiver from Analog Devices, operating from 3V to 5.5V. It is designed for surface mount applications in a 28-SSOP package.
✓ Total Stock: 14,069 pcs
$ Price Range: $1.44

MAX3237EEAI Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
9,516 pcs
On Request
9516 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,512 pcs
On Request
4512 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
41 pcs
On Request
41 pcs On Request 1 On Request On Request 0141 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX3237EEAI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
ESD Protection
Lead Spacing
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Receiver Hysteresis
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

MAX3237EEAI Description

Short technical summary and product information.

The MAX3237EEAI is a transceiver IC from Analog Devices / Maxim Integrated, designed for EIA/TIA-232 and V.28/V.24 communication interfaces. It operates from a 3.0V to 5.5V power supply and supports data rates up to 250kbps in normal mode, with a 1Mbps option in MegaBaud™ mode.



This device features 5 drivers and 3 receivers, offering a full duplex communication capability. It is built with enhanced electrostatic-discharge (ESD) protection, safeguarding against ±15kV using the Human Body Model and IEC 1000-4-2 standards. The operating temperature range is from -40°C to 85°C.



The MAX3237EEAI is supplied in a 28-SSOP package, suitable for surface mounting. Its design is suitable for peripheral applications requiring fast data transfer and robust communication interfaces.



Key electrical characteristics include a 500mV receiver hysteresis and a wide operating voltage range. The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

MAX3237EEAI Quick Information

Product Type: Transceiver
Canonical Name: MAX3237EEAI 5/3 Channel RS-232 Transceiver
Subcategory: RS-232 Transceiver

MAX3237EEAI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

MAX3237EEAI Estimated Pricing

Qty Low High
1+ $1.44 $1.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX3237EEAI Features

  • 5/3 channel RS-232 transceiver
  • 3.0V to 5.5V operating voltage
  • 250kbps data rate
  • ±15kV ESD protection
  • Surface mount 28-SSOP package

MAX3237EEAI Applications

  • Peripheral data transfer applications
  • RS-232 communication interfaces
  • Battery-powered equipment
  • Notebook and subnotebook computers

MAX3237EEAI FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the MAX3237EEAI?

The MAX3237EEAI operates at a voltage range of 3V to 5.5V.

What package type does the MAX3237EEAI come in?

The MAX3237EEAI is packaged in a 28-SSOP surface mount package.

What is the maximum data rate supported by the MAX3237EEAI?

The MAX3237EEAI supports a data rate of 250kbps, with a MegaBaud mode reaching 1Mbps.

Does the MAX3237EEAI support full duplex communication?

Yes, the MAX3237EEAI supports full duplex RS232 communication.

What is the receiver hysteresis of the MAX3237EEAI?

The receiver hysteresis of the MAX3237EEAI is 500mV.

What ESD protection level does the MAX3237EEAI have?

The MAX3237EEAI has ESD protection of ±15kV HBM.

Is the MAX3237EEAI RoHS compliant?

Yes, the MAX3237EEAI is RoHS3 compliant.
