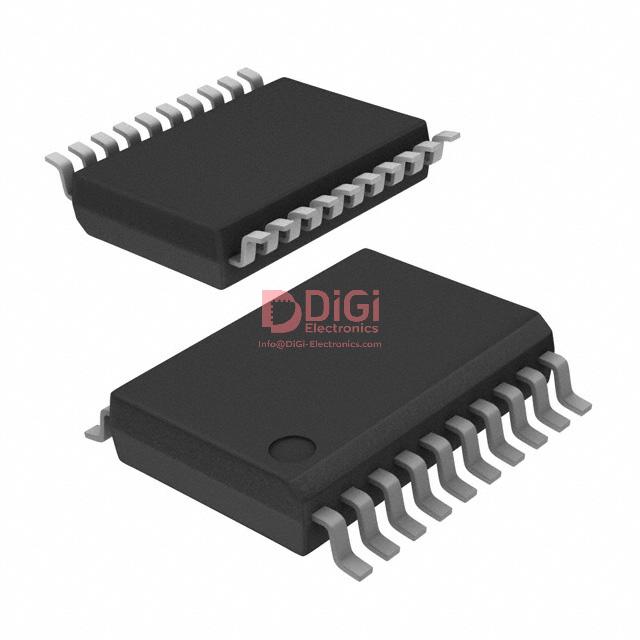

MAX3160ECAP The Analog Devices MAX3160ECAP is a full transceiver supporting RS232, RS422, and RS485 protocols. It features 2 drivers and 2 receivers in a surface-mount 20-SSOP package.
Mfr Part #:

MAX3160ECAP

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices MAX3160ECAP is a full transceiver supporting RS232, RS422, and RS485 protocols. It features 2 drivers and 2 receivers in a surface-mount 20-SSOP package.
✓ Total Stock: 8,820 pcs
$ Price Range: $0.99

MAX3160ECAP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
8,820 pcs
On Request
8820 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX3160ECAP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Mounting Type
Operating Voltage
Protocol
Receiver Hysteresis
Supplier Device Package
View Similar Products (0)

MAX3160ECAP Description

Short technical summary and product information.

The MAX3160ECAP from Analog Devices is a versatile transceiver IC designed for robust communication.



This device supports multiple protocols including RS232, RS422, and RS485, offering flexibility for various applications. It is equipped with 2 drivers and 2 receivers, operating in a full-duplex mode. The transceiver operates over a supply voltage range of 3V to 5.5V and has a data rate of up to 10Mbps.



Designed for ease of integration, the MAX3160ECAP is available in a surface-mount 20-SSOP package. Its operating temperature range is from 0°C to 70°C, making it suitable for a wide array of industrial and commercial environments. The component's receiver hysteresis is rated at 500 mV.



This transceiver is an ideal choice for applications requiring reliable serial communication interfaces. Its combination of protocol support, driver/receiver count, and package type makes it a practical solution for system designers.

MAX3160ECAP Quick Information

Product Type: Transceiver
Canonical Name: MAX3160ECAP Transceiver
Subcategory: Drivers, Receivers, Transceivers

MAX3160ECAP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX3160ECAP Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX3160ECAP Features

  • Full transceiver with RS232, RS422, RS485 support.
  • Features 2 drivers and 2 receivers for versatile communication.
  • Operates from a 3V to 5.5V supply voltage range.
  • Surface mount 20-SSOP package for easy integration.
  • 10Mbps data rate suitable for many applications.

MAX3160ECAP Applications

  • Ideal for multi-protocol serial communication.
  • Suitable for industrial automation systems.
  • Used in data acquisition systems.
  • Applicable in embedded control systems.

MAX3160ECAP FAQs

6 frequently asked questions generated from this part’s specifications.
What protocols does the MAX3160ECAP transceiver support?

The MAX3160ECAP supports RS232, RS422, and RS485 protocols.

How many drivers and receivers does the MAX3160ECAP have?

The MAX3160ECAP has 2 drivers and 2 receivers.

What is the operating voltage range for the MAX3160ECAP?

The operating voltage range for the MAX3160ECAP is 3V to 5.5V.

What is the data rate of the MAX3160ECAP?

The data rate of the MAX3160ECAP is 10Mbps.

What type of package is the MAX3160ECAP in?

The MAX3160ECAP is in a 20-SSOP package.

What is the operating temperature range for the MAX3160ECAP?

The operating temperature range for the MAX3160ECAP is 0°C to 70°C.
