| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |

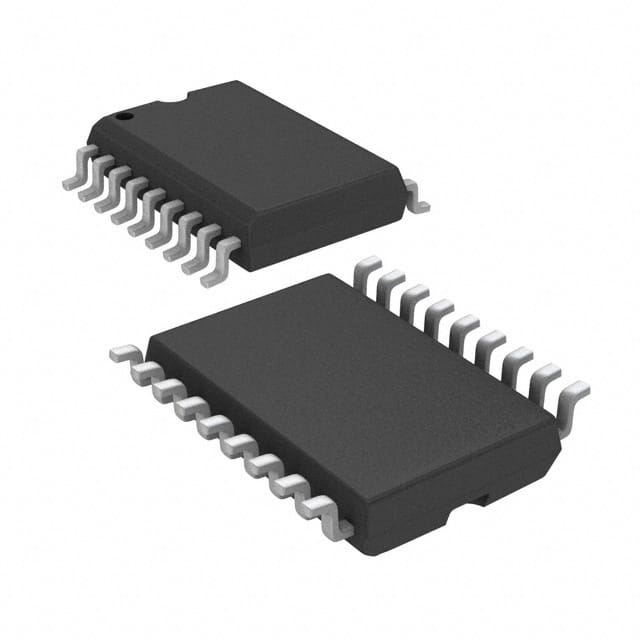

The MAX310EWN is an integrated circuit designed for video switching applications. It functions as an 8:1 multiplexer, allowing a single input to be routed to one of eight outputs or vice versa. This device is manufactured by Analog Devices / Maxim Integrated and comes in an 18-SOIC package.
Key electrical specifications include a maximum on-state resistance of 250 Ohms. The device supports a single supply voltage ranging from 9V to 36V, and dual supply voltages from ±4.5V to ±18V. It operates within a temperature range of -40°C to 85°C.
The MAX310EWN is designed for surface mount applications. It features a break-before-make switching mechanism, ensuring signal integrity during transitions. The component is classified as RoHS non-compliant and has an MSL rating of 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX310EWN supports a single supply voltage from 9V to 36V and a dual supply voltage from ±4.5V to ±18V.
The MAX310EWN is available in an 18-SOIC package.
The MAX310EWN operates in a temperature range of -40°C to 85°C.
The MAX310EWN is RoHS non-compliant.
