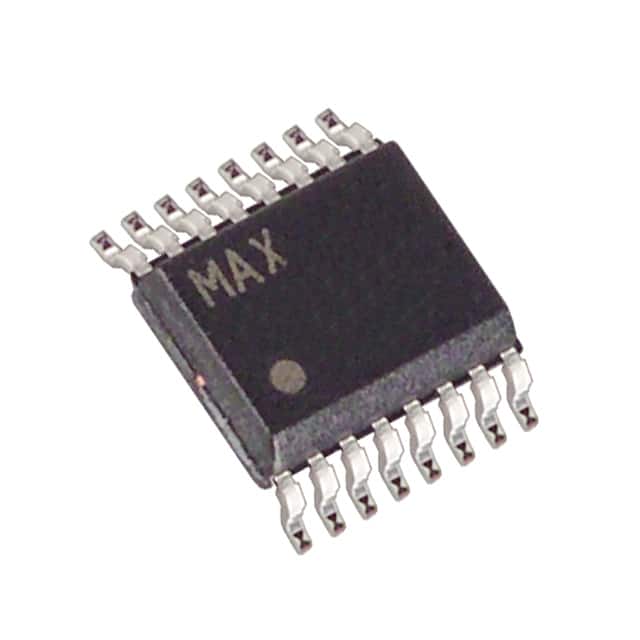

The MAX2685EEE is a surface-mount RF mixer from Analog Devices / Maxim Integrated, suitable for Cellular and ISM frequency bands. It operates with a supply voltage ranging from 2.7V to 5.5V and consumes a typical current of 14.1mA. This down-converting mixer offers a typical gain of 6.1dB and a noise figure of 13dB, operating within the 800MHz to 1GHz frequency range. It is housed in a 16-QSOP package, designed for efficient integration into RF circuits.
This component is classified under RF Mixers and is ideal for applications requiring signal down-conversion. Its surface-mount design facilitates automated assembly processes. The device is specified with RoHS3 compliance, though this status is unverified. The Moisture Sensitivity Level (MSL) is rated at 1, indicating unlimited shelf life under standard conditions, also unverified.
Key electrical characteristics include its operating voltage range and current consumption. The frequency range and gain are critical for signal processing in RF systems. The package type and mounting method are important considerations for PCB layout and manufacturing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX2685EEE operates with a voltage range of 2.7V to 5.5V.
The MAX2685EEE is supplied in a 16-QSOP package.
The typical noise figure for the MAX2685EEE is 13dB.
The typical gain of the MAX2685EEE is 6.1dB.
The MAX2685EEE operates in the frequency range of 800MHz to 1GHz.
