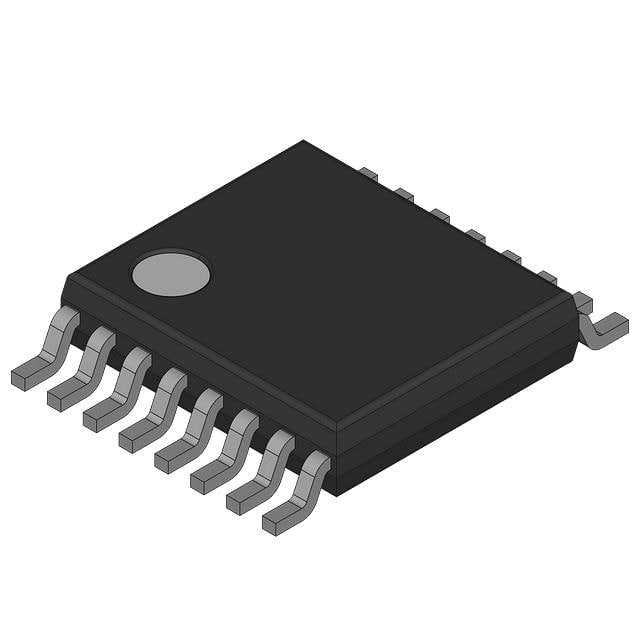

MAX2683EUE The Analog Devices MAX2683EUE is an RF mixer with a selectable doubler. It operates within a voltage range of 2.7V to 5.5V and features a frequency range of 3.4GHz to 3.8GHz.
Mfr Part #:

MAX2683EUE

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices MAX2683EUE is an RF mixer with a selectable doubler. It operates within a voltage range of 2.7V to 5.5V and features a frequency range of 3.4GHz to 3.8GHz.
✓ Total Stock: 20 pcs
$ Price Range: $0.99

MAX2683EUE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request 2000 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX2683EUE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Gain
Lead Spacing
Mounting Type
Noise Figure
Number of Mixers
RF Type
Secondary Attributes
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

MAX2683EUE Description

Short technical summary and product information.

The MAX2683EUE from Analog Devices / Maxim Integrated is a general-purpose RF mixer designed for down conversion applications. It operates with a supply voltage ranging from 2.7V to 5.5V and consumes 55mA of current. The mixer supports a frequency range of 3.4GHz to 3.8GHz, offering a typical gain of 6.7dB and a noise figure of 13.6dB.



This component is housed in a 16-TSSOP (0.173", 4.40mm Width) Exposed Pad package, suitable for surface mounting. It is classified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The MAX2683EUE is designed for applications requiring a single mixer with selectable doubler functionality.

MAX2683EUE Quick Information

Product Type: RF Mixer
Canonical Name: MAX2683EUE RF Mixer
Subcategory: RF Mixer

MAX2683EUE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX2683EUE Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX2683EUE Features

  • Mixer with selectable doubler functionality.
  • Operates from 2.7V to 5.5V supply.
  • Covers 3.4GHz to 3.8GHz frequency range.
  • Surface mountable 16-TSSOP-EP package.
  • RoHS3 compliant for environmental considerations.

MAX2683EUE Applications

  • Ideal for RF down conversion circuits.
  • Suitable for general purpose RF applications.
  • Used in systems requiring selectable doubling.
  • Designed for compact surface mount designs.

MAX2683EUE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MAX2683EUE?

The MAX2683EUE operates within a voltage range of 2.7V to 5.5V.

What is the frequency range of the MAX2683EUE RF mixer?

The MAX2683EUE mixer operates in the frequency range of 3.4GHz to 3.8GHz.

What is the typical gain of the MAX2683EUE?

The typical gain for the MAX2683EUE is 6.7dB.

What is the noise figure for the MAX2683EUE?

The noise figure for the MAX2683EUE is 13.6dB.

What package type is the MAX2683EUE supplied in?

The MAX2683EUE is supplied in a 16-TSSOP (0.173", 4.40mm Width) Exposed Pad package.

How is the MAX2683EUE mounted?

The MAX2683EUE is designed for surface mount installation.
