| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,387 pcs
|
2387 pcs | On Request | 1 | On Request | On Request | 940 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| Operating Temperature Range | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Test Frequency | |
| Voltage |
The MAX2658EWT+T is a high-gain, low-noise amplifier (LNA) from Analog Devices / Maxim Integrated, specifically designed for GPS L1, Galileo, and GLONASS applications. It is built using an advanced SiGe process to achieve high gain and an ultra-low noise figure of 0.8dB, while maximizing the input-referred 1dB compression point and 3rd-order intercept point.
This amplifier operates from a single supply voltage ranging from 1.6V to 3.3V. The MAX2658 variant is optimized for high linearity. It features a shutdown mode that reduces supply current to less than 1µA. The device is available in a very small, lead-free, RoHS-compliant wafer-level package (WLP).

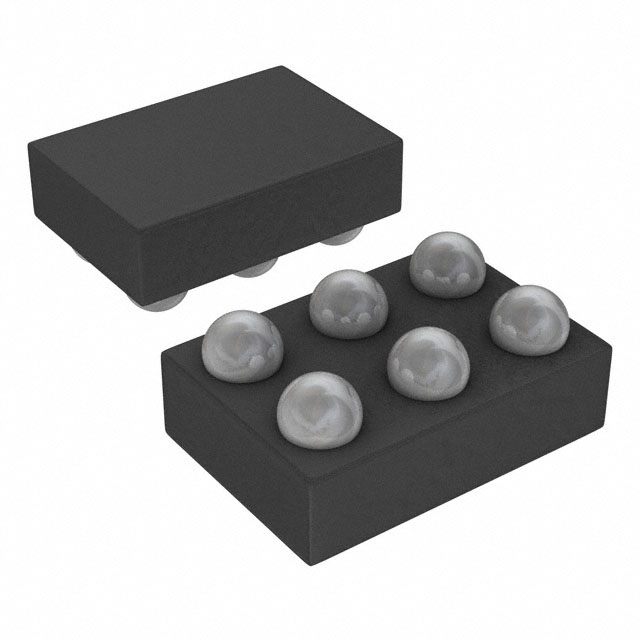

Key electrical specifications include a typical supply current of 7.7mA, a gain of 17.7dB, and a test frequency of 1575.42MHz. The package is a 6-WLP with dimensions of 1.24mm x 0.84mm, suitable for surface mounting. The operating temperature range is -40°C to +85°C.
Applications for the MAX2658EWT+T include location-enabled mobile devices, telematics, personal navigation devices, cellular phones with GPS, notebook PCs, and marine navigation systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.6V to 3.3V.
The typical supply current is 7.7mA when SHDN is high.
The typical gain is 17.7dB.
The typical noise figure is 0.8dB.
The test frequency is 1575.42MHz.
The MAX2658EWT+T is designed for GPS signals.
The operating temperature range is -40°C to +85°C.
