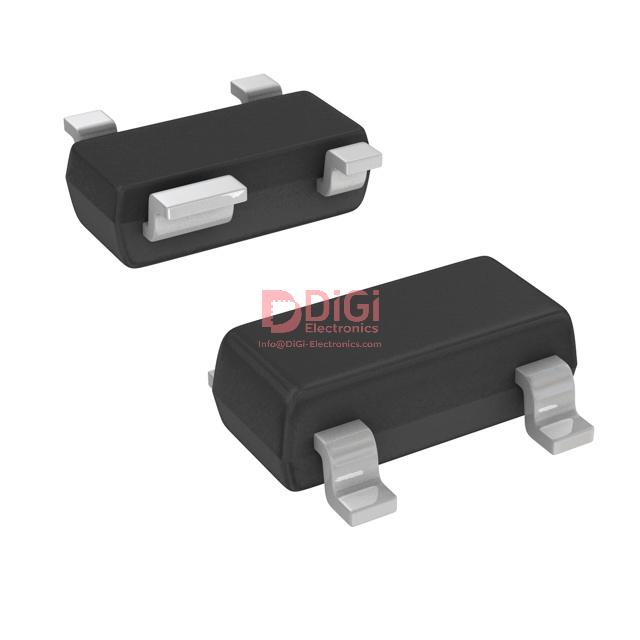

MAX2650EUS The MAX2650EUS is an RF Amplifier from Analog Devices. It operates within a frequency range of 0Hz to 700MHz and features a gain of 16dB to 18dB.
Mfr Part #:

MAX2650EUS

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX2650EUS is an RF Amplifier from Analog Devices. It operates within a frequency range of 0Hz to 700MHz and features a gain of 16dB to 18dB.
✓ Total Stock: 36,160 pcs
$ Price Range: $0.99

MAX2650EUS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
36,160 pcs
On Request
36160 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX2650EUS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Gain
Lead Style
Mounting Type
Noise Figure
P1dB
RF Type
SVHC Present
Supplier Device Package
Supply Current
Supply Voltage
Test Frequency
View Similar Products (0)

MAX2650EUS Description

Short technical summary and product information.

The MAX2650EUS is an RF Amplifier manufactured by Analog Devices. This component is designed for applications requiring signal amplification within the 0Hz to 700MHz frequency spectrum. It offers a typical gain range of 16dB to 18dB and a P1dB of 2dBm, making it suitable for various RF circuits.



The device operates with a supply voltage between 2.6V and 4V, drawing a current of 10mA to 30mA. It is configured for surface mounting, utilizing a TO-253-4, TO-253AA package, with the supplier device package specified as SOT-143-4. The RF type is categorized as ISM, PCS.



Environmental compliance includes RoHS3 compliance, REACH unaffected status, and Moisture Sensitivity Level (MSL) 1. The product status is listed as Obsolete.

MAX2650EUS Quick Information

Product Type: RF Amplifier
Series: MAX2650
Canonical Name: MAX2650EUS RF Amplifier

MAX2650EUS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: Unaffected

MAX2650EUS Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX2650EUS Features

  • Operates from 0Hz to 700MHz frequency range.
  • Provides 16dB to 18dB of gain.
  • Requires 2.6V to 4V supply voltage.
  • Surface mountable SOT-143-4 package.
  • Suitable for ISM and PCS applications.

MAX2650EUS Applications

  • Used in ISM band RF amplifiers.
  • Suitable for PCS band applications.
  • Ideal for broadband RF signal amplification.
  • Used in surface mount RF amplifier designs.

MAX2650EUS FAQs

6 frequently asked questions generated from this part’s specifications.
What is the frequency range of the MAX2650EUS?

The MAX2650EUS operates from 0Hz to 700MHz.

What is the gain of the MAX2650EUS?

The typical gain is 16dB to 18dB.

What is the noise figure of the MAX2650EUS?

The noise figure is 3dB.

What is the supply voltage requirement?

Supply voltage is 2.6V to 4V.

What package does the MAX2650EUS use?

It is available in TO-253-4 / SOT-143-4 surface-mount package.

What RF types is the MAX2650EUS designed for?

The device is designed for ISM and PCS applications.
