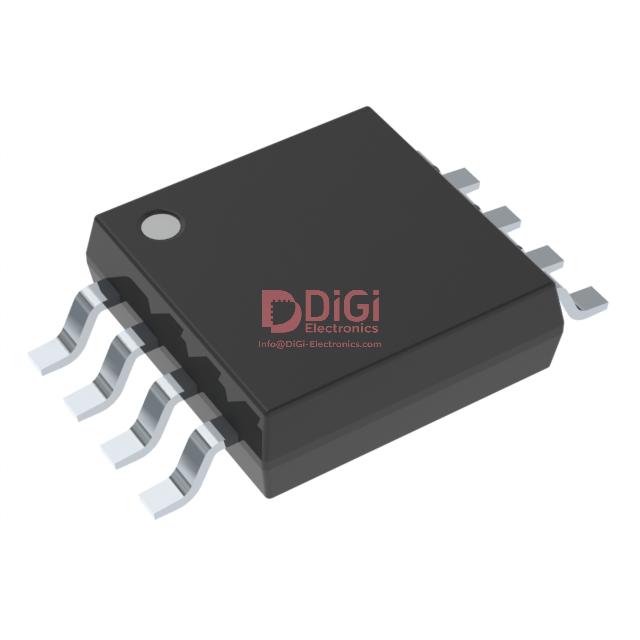

The MAX253CUA is a monolithic oscillator and power-driver IC from Analog Devices, specifically engineered to provide isolated power for RS-485 or RS-232 data interfaces. It drives a center-tapped transformer primary from a 5V or 3.3V DC power supply, enabling the secondary to provide any isolated voltage up to 1W.
Key electrical specifications include a typical supply current of 450µA and a low-current shutdown mode of 0.4µA. The device supports pin-selectable frequencies of 350kHz or 200kHz. It operates within a temperature range of 0°C to 70°C.
The MAX253CUA is housed in an 8-pin µMAX package, suitable for applications requiring minimal board space. Its design facilitates simple power-supply transformer driver configurations for high noise-immunity communications interfaces, isolated power supplies, and bridge ground differentials.
This component is ideal for applications in medical equipment and process control where robust and isolated communication is essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX253CUA operates from 3.3V or 5V supplies.
The operating temperature range is 0°C to 70°C.
It is available in an 8-TSSOP/8-MSOP package with a supplier device package of 8-uMAX/uSOP.
The typical supply current is 450µA.
Yes, the switching frequency is pin-selectable between 200kHz and 350kHz.
The shutdown supply current is 0.4µA typical.
It is a transformer driver designed for RS485 isolation applications.
