| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,346 pcs
|
9346 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Input Voltage | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| PSRR | |
| Package / Case |
The MAX25302A/MAX25302B series from ADI Electronics are 2A automotive low-noise linear regulators designed for demanding applications. They feature a wide input voltage range of 1.7V to 5.5V and deliver up to 2A of output current with a low dropout voltage of only 100mV at full load.
These regulators offer excellent noise performance, with only 5.1μV RMS of output noise from 10Hz to 100kHz, and maintain ±1% output accuracy over line, load, and temperature variations. The MAX25302B allows for adjustable output voltages from 0.6V to 5.0V using external resistors, while the MAX25302A provides nine pin-selectable fixed output voltages. Both versions include programmable soft-start, overcurrent protection, thermal-overload protection, and output-to-input reverse-current protection.
Designed for ease-of-use and robustness, the MAX25302A/MAX25302B are AEC-Q100 qualified and operate over a temperature range of -40°C to +125°C. They are supplied in a compact 3mm x 3.5mm, 14-pin TDFN package, making them suitable for space-constrained automotive electronics, high-end audio systems, and high-resolution data-acquisition systems.
The input voltage range is 1.7V to 5.5V.
The output voltage is programmable from 0.6V to 5.0V.
The maximum output current is 2A.
The maximum dropout voltage is 100mV at 2A load.
The operating temperature range is -40°C to +125°C.

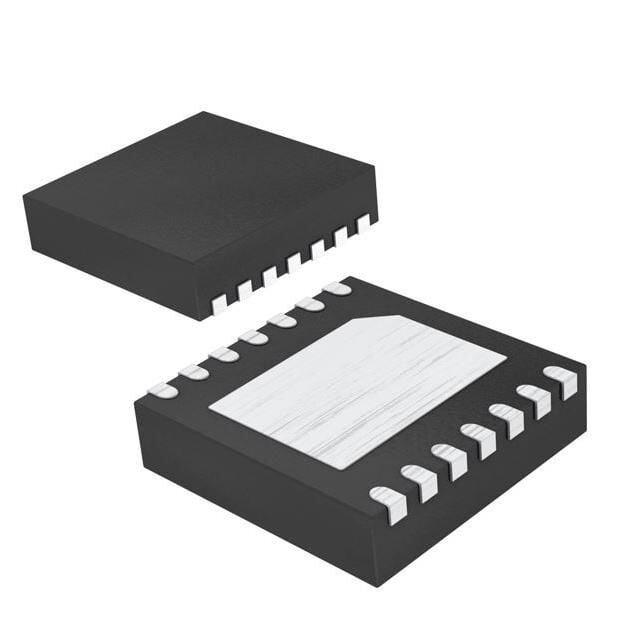

It is available in a 14-pin TDFN package measuring 3mm x 3.5mm.
The accuracy is ±1% over load, line, and temperature.
