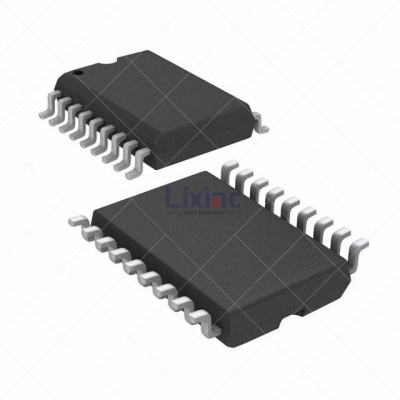

MAX242EWN The MAX242EWN from Analog Devices is a full duplex RS232 transceiver designed for EIA/TIA-232E and V.28/V.24 communications. It operates on a single +5V supply.
Mfr Part #:

MAX242EWN

Available from 3 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX242EWN from Analog Devices is a full duplex RS232 transceiver designed for EIA/TIA-232E and V.28/V.24 communications. It operates on a single +5V supply.
✓ Total Stock: 7,325 pcs
$ Price Range: $1.44

MAX242EWN Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,750 pcs
On Request
5750 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,531 pcs
On Request
1531 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request 00+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX242EWN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Lead Spacing
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Receiver Hysteresis
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

MAX242EWN Description

Short technical summary and product information.

The MAX242EWN is a multichannel RS-232 transceiver from Analog Devices, part of the MAX220-MAX249 family. It is designed for EIA/TIA-232E and V.28/V.24 communication interfaces, particularly in applications where a bipolar ±12V supply is not available. This device enables single supply operation from a +5V source, thanks to its integrated charge pump circuitry.



Key electrical specifications include a data rate of 200kbps and receiver hysteresis of 500 mV. The transceiver operates within a voltage range of 4.5V to 5.5V and supports full duplex communication with 2 drivers and 2 receivers. It features a low power shutdown mode consuming only 5μW.



The MAX242EWN is housed in an 18-SOIC package and is designed for surface mount applications. It operates across a temperature range of -40°C to 85°C. This transceiver is suitable for interface translation, multidrop RS-232 networks, and portable diagnostic equipment.

MAX242EWN Quick Information

Product Type: Transceiver
Series: MAX242
Canonical Name: MAX242EWN Transceiver
Subcategory: RS232 Transceiver

MAX242EWN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX242EWN Estimated Pricing

Qty Low High
1+ $1.44 $1.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX242EWN Features

  • Full duplex RS232 transceiver.
  • Operates from a single +5V supply.
  • Integrated charge pump circuitry.
  • 200kbps data rate.
  • Surface mount 18-SOIC package.

MAX242EWN Applications

  • Suitable for RS-232 communication interfaces.
  • Ideal for portable diagnostics equipment.
  • Used in multidrop RS-232 network applications.
  • Applicable in space-constrained circuit designs.
  • Supports single supply operation from +5V.

MAX242EWN FAQs

5 frequently asked questions generated from this part’s specifications.
What type of interface does the MAX242EWN support?

The MAX242EWN supports RS232 protocol.

What is the operating voltage for the MAX242EWN?

The MAX242EWN operates from 4.5V to 5.5V.

What is the package type of the MAX242EWN?

The MAX242EWN is available in an 18-SOIC (0.295", 7.50mm Width) package.

What is the operating temperature range for the MAX242EWN?

The MAX242EWN operates in a temperature range of -40°C to 85°C.

Does the MAX242EWN have a shutdown mode?

Yes, the MAX242EWN features a 5μW shutdown mode.
