| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
578 pcs
|
578 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
202 pcs
|
202 pcs | On Request | 1 | On Request | On Request | 9327P/ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Data Rate | |
| Duplex | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The MAX236CWG is a transceiver IC from Analog Devices / Maxim Integrated, part of the MAX220–MAX249 family. It is designed for EIA/TIA-232E and V.28/V.24 communications interfaces, particularly in applications where a bipolar ±12V supply is not available. This device enables single supply operation from a +5V supply, thanks to its integrated charge pump circuitry.
Key electrical specifications include a data rate of 120Kbps and a receiver hysteresis of 500 mV. It operates with a supply voltage range of 4.5V to 5.5V and has a full duplex mode. The operating temperature range is from 0°C to 70°C.

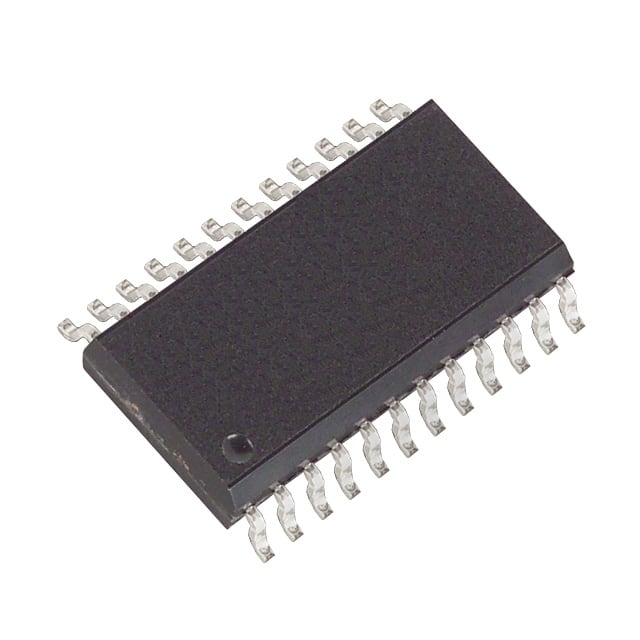

The MAX236CWG is supplied in a 24-SOIC package, suitable for surface mount applications. The package dimensions are 24-SOIC (0.295", 7.50mm Width). This transceiver is suitable for applications such as interface translation, multidrop RS-232 networks, and portable diagnostics equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX236CWG operates within a voltage range of 4.5V to 5.5V.
The MAX236CWG has an operating temperature range of 0°C to 70°C.
The MAX236CWG is available in a 24-SOIC package.
The MAX236CWG supports the RS232 communication protocol.
The MAX236CWG transceiver supports a data rate of 120Kbps.
No, the MAX236CWG features integrated charge pump circuitry that eliminates the need for a bipolar ±12V supply, enabling single supply operation from +5V.
