| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,101 pcs
|
3101 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Type | |
| Voltage |
The MAX232ESE+T from Analog Devices is a versatile RS-232 transceiver, part of the MAX220–MAX249 family. This component is designed for EIA/TIA-232E and V.28/V.24 communications interfaces, particularly in applications where a bipolar ±12V supply is not available, enabling single supply operation from a +5V source.
Key electrical specifications include an operating voltage range of 4.5V to 5.5V and a data rate of 120Kbps. It features a full duplex configuration with 2 drivers and 2 receivers, and provides 500mV of receiver hysteresis. The device is suitable for applications such as interface translation and multidrop RS-232 networks.

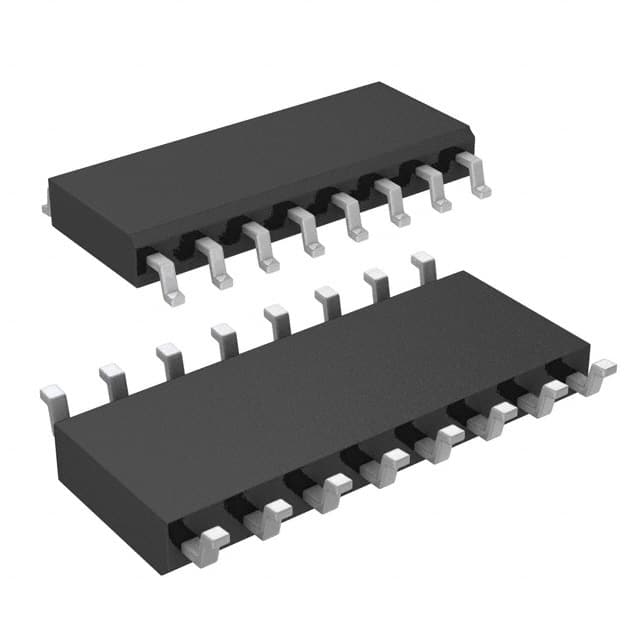

Packaged in a 16-SOIC (0.154", 3.90mm Width) surface mount package, the MAX232ESE+T is designed for efficient board space utilization. It operates within a temperature range of -40°C to 85°C, making it suitable for a variety of environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the MAX232ESE+T is 4.5V to 5.5V.
The MAX232ESE+T is available in a 16-SOIC package.
The operating temperature range for the MAX232ESE+T is -40°C to 85°C.
The MAX232ESE+T transceiver supports a data rate of 120Kbps.
The MAX232ESE+T supports the RS232 protocol.
