| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72,320 pcs
|
72320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Frequency | |
| Function | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| RF Type | |
| Secondary Attributes | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel |

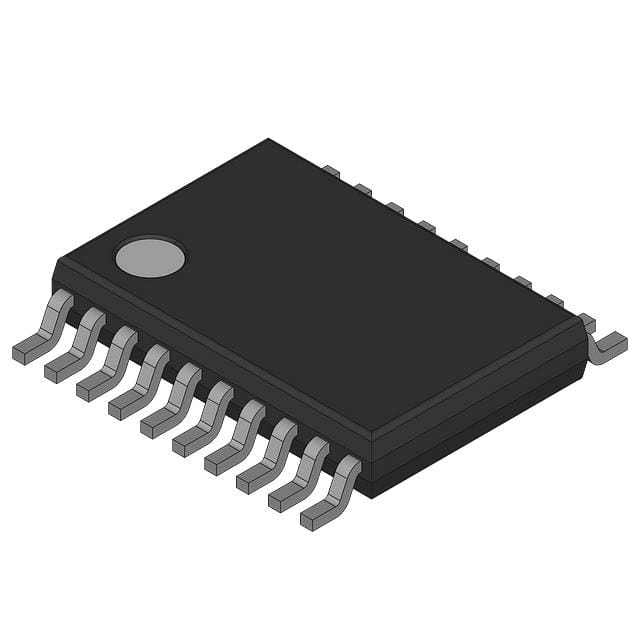

The MAX2321EUP is a high-performance silicon germanium (SiGe) receiver front-end integrated circuit designed for RF applications. It functions as a Dual Band LNA/Mixer, supporting frequencies from 800MHz up to 2.5GHz. This device is suitable for various cellular and wireless communication standards including CDMA, Cellular, GSM, PDC, TDMA, and WLL.
The IC is designed for surface mounting and comes in a 20-TSSOP package. It operates with a supply voltage ranging from 2.7V to 3.6V and has a maximum supply current of 30.8mA. The operating temperature range is from -40°C to 85°C.
Key features include dual low-noise amplifier (LNA) gain settings and a low-current paging mode. The family integrates features like an LO frequency doubler and divider, contributing to its industry-leading low noise and high linearity performance at a low supply current. This makes it an excellent choice for extending handset standby time.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX2321EUP operates from 800MHz to 2.5GHz.
The MAX2321EUP is supplied in a 20-TSSOP package.
The MAX2321EUP is designed for surface mounting.
The MAX2321EUP operates with a supply voltage between 2.7V and 3.6V.
The maximum operating temperature for the MAX2321EUP is 85°C.
The minimum operating temperature for the MAX2321EUP is -40°C.
