| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,280 pcs
|
4280 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The MAX222EWN-T is a full duplex transceiver designed for RS-232 communication interfaces. Manufactured by Analog Devices / Maxim Integrated, this component is suitable for applications requiring reliable serial data transmission.
Key electrical specifications include an operating voltage range of 4.5V to 5.5V and a data rate of up to 200kbps. The transceiver features 2 drivers and 2 receivers, operating under the RS-232 protocol. It is designed to function within an operating temperature range of -40°C to 85°C.

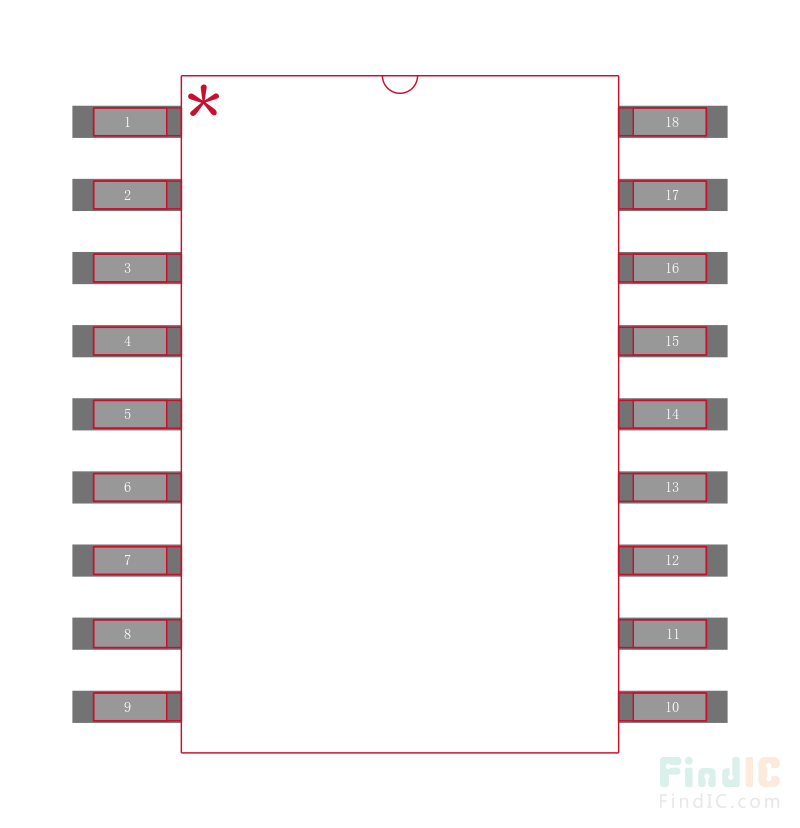

The device is supplied in an 18-SOIC package, designed for surface mount installation. The packaging is provided on tape and reel, suitable for automated assembly processes. Environmental compliance includes RoHS3 compliance and an MSL 1 rating.
This transceiver is part of the MAX220-MAX249 family, known for enabling single-supply operation from a +5V supply by eliminating the need for a bipolar ±12V supply, thanks to integrated charge pump circuitry.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX222EWN-T operates from a 4.5V to 5.5V supply.
The operating temperature range for the MAX222EWN-T is -40°C to 85°C.
The MAX222EWN-T is supplied in an 18-SOIC package.
The MAX222EWN-T is RoHS3 Compliant.
