| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,397 pcs
|
1397 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| Bandwidth | |
| Current | |
| Features | |
| Full Scale Range (Maximum) | |
| Lead Spacing | |
| Operating Temperature | |
| Operating Temperature (Maximum) | |
| Operating Temperature - Maximum | |
| Operating Voltage (Maximum) | |
| Output Type | |
| Range ° | |
| Sensitivity (LSB | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| bandwidth (Maximum) | |
| sensitivity (Maximum) |
The MAX21000+ is a low-power, low-noise, 3-axis angular rate sensor from Analog Devices, designed for applications requiring high accuracy and sensitivity over temperature and time. It operates with a supply voltage as low as 1.71V, making it suitable for power-sensitive devices.
This digital gyroscope offers a finely tunable user-selectable bandwidth and a wide range of full-scale options, from ±31.25 dps to ±2000 dps. It communicates via I2C or SPI interfaces and is housed in a compact 16-LGA package. The device includes features such as adjustable bandwidth, selectable scale, sleep mode, and an embedded temperature sensor.
With its low noise, low phase delay, and high bandwidth, the MAX21000+ is well-suited for motion control, user interface, and optical image stabilization applications. It operates reliably within a temperature range of -40°C to +85°C.

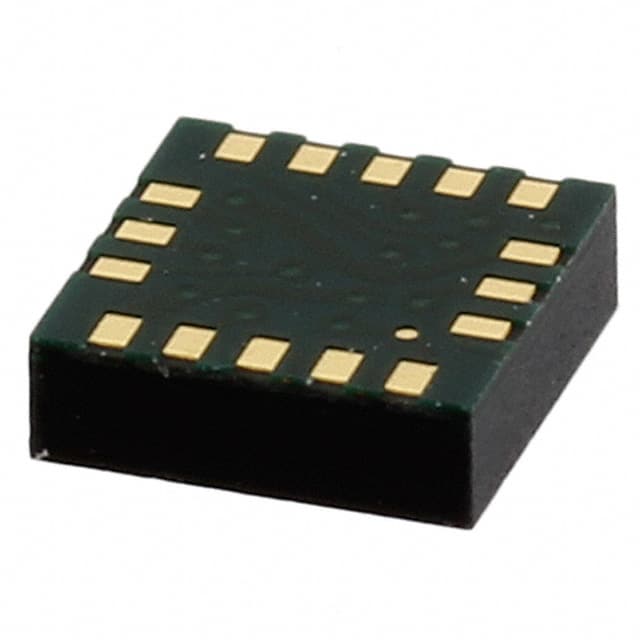

The gyroscope is available in a 16-VFLGA package, designed for surface mounting. Its integrated sensing element and IC interface simplify system design, requiring only supply bypass capacitors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.71V to 3.6V.
The operating temperature range is -40°C to 85°C.
The MAX21000+ supports I2C and SPI interfaces.
The full-scale range is selectable from ±31.25 dps up to ±2000 dps.
The typical current consumption is 5.4 mA.
The MAX21000+ is available in a 16-VFLGA package.
