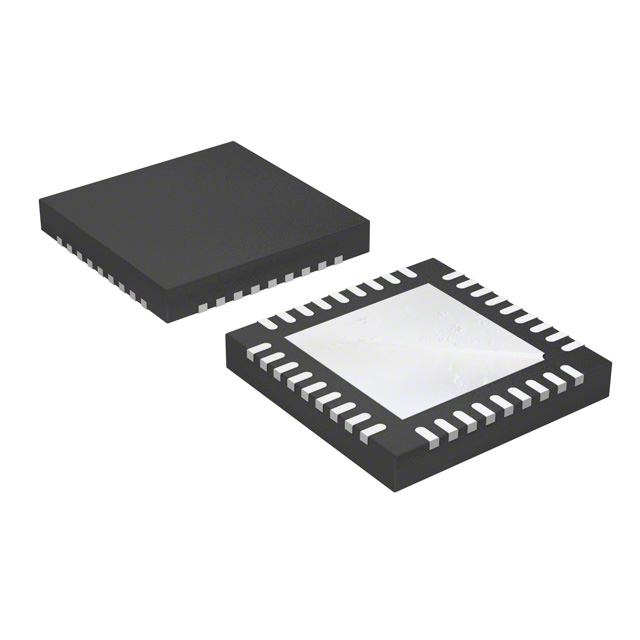

The MAX20751EKX+ from Analog Devices is a PMBus-compliant multiphase master IC capable of driving up to four smart-slave integrated power devices. This high-density solution is suitable for communication, networking, servers, and storage equipment, as well as ASICs, microprocessor chipsets, and memory VDDQ.
Key electrical specifications include an operating voltage range of 1.71V to 3.63V and a frequency range of 300kHz to 800kHz. The device supports four output phases and functions as a step-down buck converter. It features PMBus serial interfaces for telemetry and power management, along with control features like Phase Control, Power Good, and Ramp.
The IC is housed in a 36-QFN (6x6) package with a surface mount type. It operates within a temperature range of -40°C to 125°C (TJ). The design benefits from increased power density with fewer external components and compatibility with coupled inductors for fast transient response.
This multiphase master IC incorporates current reporting, temperature monitoring, and fault detection. Overcurrent and overtemperature faults are managed through the smart slaves and communicated via the master IC. An integrated switching regulator can optionally supply the VDD rail for master and slave devices, simplifying regulator design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.71V to 3.63V.
The operating temperature range is -40°C to 125°C (TJ).
The MAX20751EKX+ is available in a 36-QFN (6x6) package with a surface mount type.
The switching frequency range is 300kHz to 800kHz.
The MAX20751EKX+ supports 4 output phases.
The MAX20751EKX+ uses the PMBus serial interface.
