| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | 832 | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| Frequency | |
| Input Range | |
| Mounting Type | |
| Operating Temperature | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The MAX2016ETI+ by Analog Devices is a dual logarithmic detector and controller designed for comprehensive RF signal analysis. It supports measurements of power, gain/loss, and Voltage Standing Wave Ratio (VSWR) for two incoming RF signals simultaneously, covering a frequency range from 30kHz to 2.5GHz.
This device features a high dynamic range of 80dB and exceptional accuracy of ±1dB over temperature variations. It operates from a single supply voltage of 2.7V to 5.25V and consumes 16mA of current. The MAX2016ETI+ includes an internal 2V reference and comparators, facilitating the implementation of window detectors for alarm monitoring, such as detecting high-VSWR conditions.

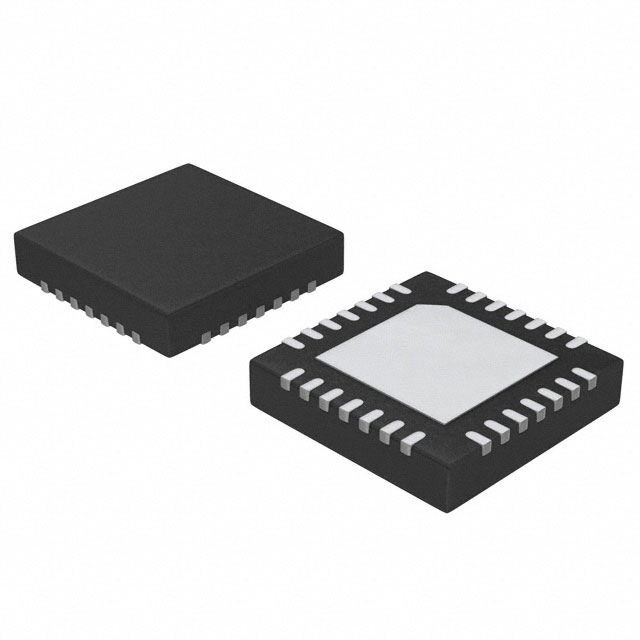

Packaged in a space-saving 5mm x 5mm, 28-pin thin QFN, the MAX2016ETI+ is suitable for surface mount applications. Its robust design makes it ideal for applications in cellular base stations, microwave links, radar systems, and RF/IF power amplifier linearization.
Key specifications include a wide input range from -70dBm to 10dBm and an operating temperature range of -40°C to 85°C. The device is compliant with RoHS3 standards and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX2016ETI+ operates from a supply voltage of 2.7V to 5.25V.
The MAX2016ETI+ supports a frequency range from 30kHz to 2.5GHz.
The MAX2016ETI+ has an accuracy of ±1dB.
The MAX2016ETI+ is available in a 28-pin Thin QFN package.
The MAX2016ETI+ is specified for operation over the extended temperature range of -40°C to 85°C.
